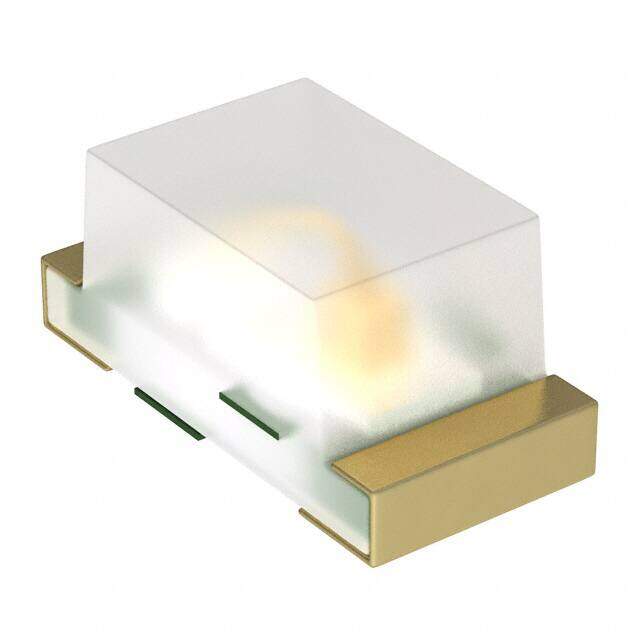

VAOL-S6WR4
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED Uni-Color White 2-Pin Chip 0603(1608Metric) T/R
PDF
/
Buying Options
Total Price: USD $0.91
Unit Price: USD $0.9064
≥1 USD $0.9064
≥10 USD $0.59312
≥100 USD $0.388432
≥500 USD $0.306636
≥1000 USD $0.286194
Inventory: 1288
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Number of Pins 2
Technical
Packaging Tape & Reel (TR)
Published 2009
Size / Dimension 1.60mm Lx0.80mm W
Part Status Active
Moisture Sensitivity Level (MSL) 2 (1 Year)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color White
Power Rating 110mW
Case Code (Metric) 1608
Case Code (Imperial) 0603
Configuration Standard
Voltage - Forward (Vf) (Typ) 3V
Viewing Angle 130°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 5mA
Lens Style Rectangle with Flat Top
Lens Size 1.20mmx0.80mm
Luminous Intensity 90 mcd
Millicandela Rating 68mcd
Lens Transparency Diffused
Lens Color Yellow
Dimensions
Height 600μm
Compliance
RoHS Status ROHS3 Compliant
