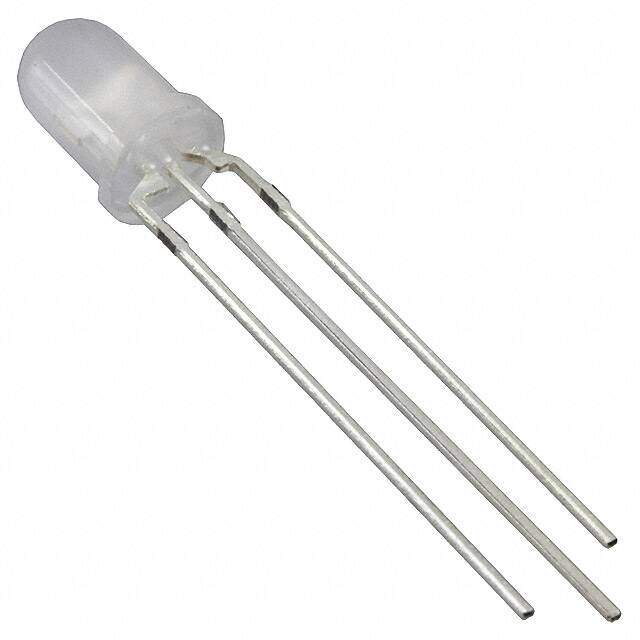

VAOB-5GADE2-C
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
Standard LEDs - Through Hole Red/Grn Diffused 640/570nm 100/80mcd
PDF
/
Buying Options
Total Price: USD $0.63
Unit Price: USD $0.6336
≥1 USD $0.6336
≥10 USD $0.41272
≥100 USD $0.27016
≥500 USD $0.213312
≥1000 USD $0.199091
≥3000 USD $0.191981
Inventory: 1322
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 5.9mm
Height 8.6mm
Technical
Wavelength - Dominant 570nm Green 640nm Red
Reverse Voltage 5V
Lens Transparency Diffused
Illumination Color Green, Red
Millicandela Rating 80mcd Green, 100mcd Red
Luminous Intensity 100 mcd
Lens Size 4.80mm Dia
Lens Style Round with Domed Top
Current - Test 20mA Green 20mA Red
Forward Current 30mA
Optoelectronic Device Type DUAL COLOR LED
Viewing Angle 60 °
Voltage - Forward (Vf) (Typ) 2V Green 2V Red
Power Dissipation 100mW
Configuration Common Cathode
Number of Elements 2
Depth 5.9mm
Color Green, Red
Min Operating Temperature -40°C
Max Operating Temperature 80°C
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
Published 2009
Packaging Bulk
Physical
Number of Pins 3
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 4 Weeks
