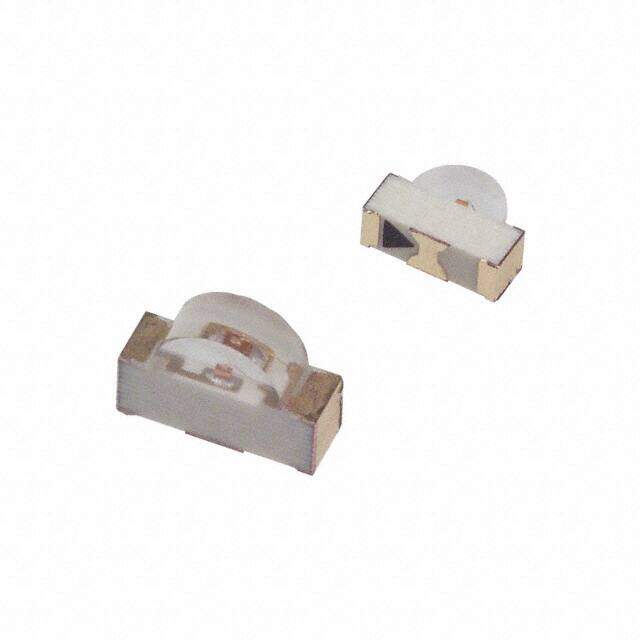

CMD12-21SRC/TR8 image
Favorite
CMD12-21SRC/TR8 image
Favorite
RoHS
RoHS RoHS compliant
Package 2-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description LED RED CLEAR SMD R/A
PDF
/
Buying Options
Total Price: USD $0.68
Unit Price: USD $0.678769
≥1 USD $0.678769
≥200 USD $0.270457
≥500 USD $0.26258
≥1000 USD $0.257328
Inventory: 984
Minimum: 1
-
+

Technical Details

Physical

Shape RECTANGULAR
Number of Pins 2
Package / Case 2-SMD, No Lead
Mounting Type Surface Mount, Right Angle
Mount Surface Mount

Supply Chain

Factory Lead Time 9 Weeks

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Height 2mm

Technical

Reverse Voltage 4V
Lens Color Colorless
Wavelength - Peak 660nm
Lens Transparency Clear
Luminous Intensity 24 mcd
Test Current 20mA
Lens Size 2.00mmx1.00mm
Lens Style Rectangle with Domed Top
Forward Current 30mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Power Dissipation 85mW
Voltage 1.7V
Configuration Standard
Number of Elements 1
Case Code (Imperial) 1208
Case Code (Metric) 3020
Depth 2mm
Number of Functions 1
Packing Method TAPE AND REEL
Color Red
Min Operating Temperature -30°C
Max Operating Temperature 90°C
Number of Terminations 2
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Pbfree Code yes
Size / Dimension 3.00mm Lx2.00mm W
Series BrightAngle?
Published 2012
Packaging Tape & Reel (TR)
