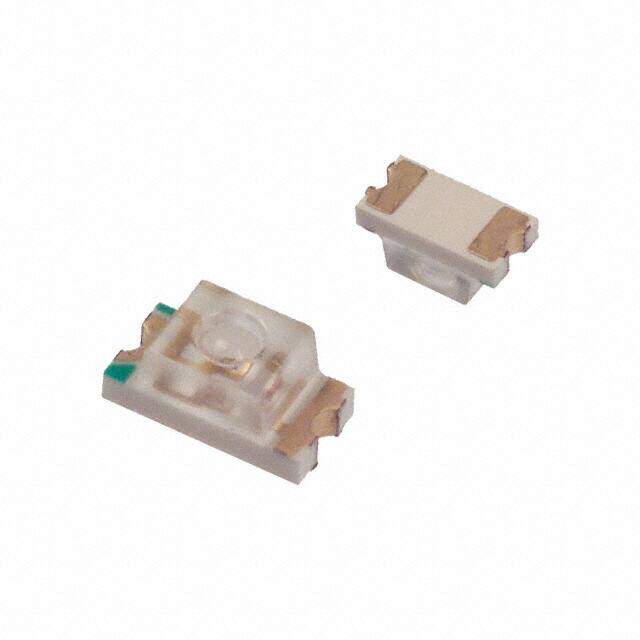

CMD11-21SRC/TR8
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED RED CLEAR 1206 SMD
PDF
/
Buying Options
Total Price: USD $0.79
Unit Price: USD $0.792
≥1 USD $0.792
≥10 USD $0.51568
≥100 USD $0.337744
≥500 USD $0.26664
Inventory: 1196
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height 1.5mm
Technical
Reverse Voltage (DC) 5V
Number of LEDs 1
Reverse Voltage 5V
Wavelength - Peak 660nm
Lens Transparency Clear
Millicandela Rating 51mcd
Luminous Intensity 51 mcd
Lens Size 1.10mm Dia
Lens Style Round with Flat Top
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 20°
Voltage - Forward (Vf) (Typ) 1.7V
Configuration Standard
Case Code (Imperial) 1206
Case Code (Metric) 3216
Number of Functions 1
Packing Method TAPE AND REEL
Power Rating 100mW
Color Red
Min Operating Temperature -30°C
Max Operating Temperature 90°C
Number of Terminations 2
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Not For New Designs
Pbfree Code yes
Size / Dimension 3.00mm Lx1.50mm W
Published 2011
Packaging Tape & Reel (TR)
Physical
Number of Pins 2
Package / Case 1206 (3216 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
