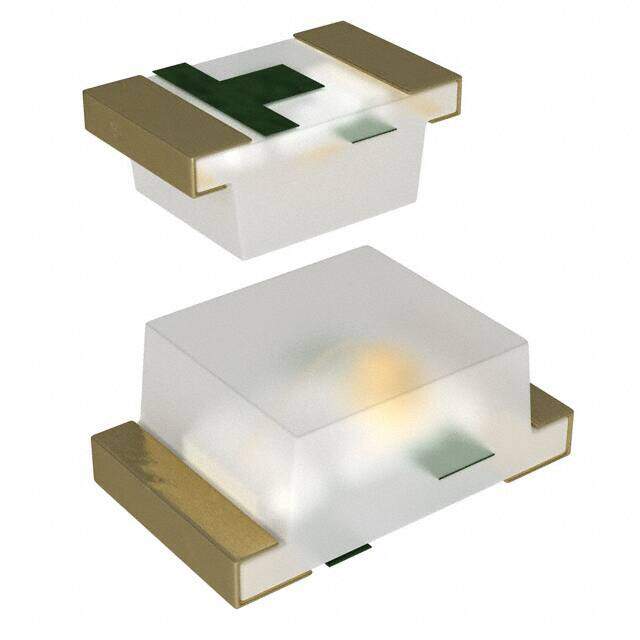

7012X13 image
Favorite
RoHS
RoHS RoHS compliant
Package 0805 (2012 Metric)
Category Optoelectronics / LED Indication - Discrete
Description LED YELLOW CLEAR 0805 SMD
PDF
/
Inventory: 1167
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Shape RECTANGULAR

Technical

Packaging Tape & Reel (TR)
Published 2003
Series BrightChips?
Size / Dimension 2.00mm Lx1.25mm W
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Number of Terminations 2
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Yellow
HTS Code 8541.40.20.00
Power Rating 62.5mW
Packing Method TAPE AND REEL
Number of Functions 1
Case Code (Metric) 2012
Case Code (Imperial) 0805
Configuration Standard
Voltage - Forward (Vf) (Typ) 2.2V
Viewing Angle 120 °
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 20mA
Lens Style Rectangle with Flat Top
Lens Size 1.19mmx1.25mm
Luminous Intensity 3.7 mcd
Millicandela Rating 3.7mcd
Lens Transparency Clear
Wavelength - Peak 580nm
Reverse Voltage (DC) 4V

Dimensions

Height 790μm

Compliance

RoHS Status ROHS3 Compliant
