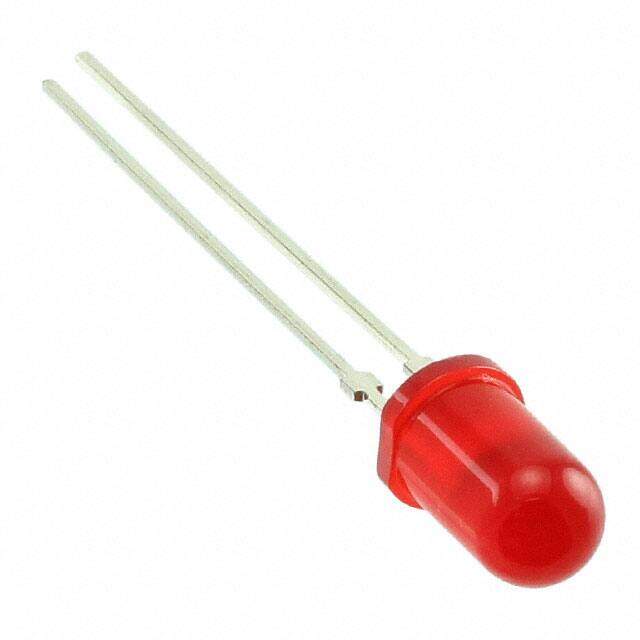

TLDR5400 image
Favorite
RoHS
RoHS RoHS compliant
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description Standard LEDs - Through Hole Red Tinted Diffused
PDF
/
Buying Options
Total Price: USD $0.52
Unit Price: USD $0.5192
≥1 USD $0.5192
≥10 USD $0.32032
≥100 USD $0.184008
≥500 USD $0.143986
≥1000 USD $0.131991
≥3000 USD $0.119988
Inventory: 1130
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Radiation Hardening No

Dimensions

Height (Max) 12.80mm
Length 5.8mm
Height 8.7mm
Diameter 5mm

Technical

Number of LEDs 1
Wavelength - Dominant 648nm
Wavelength 650 nm
Reverse Voltage 6V
Wavelength - Peak 650nm
Lens Transparency Diffused
Illumination Color Red
Millicandela Rating 70mcd
Luminous Intensity 70 mcd
Forward Voltage 1.8V
Lens Size 5mm T-1 3/4
Lens Style Round with Domed Top
Current - Test 20mA
Forward Current 20mA
Viewing Angle 60°
Voltage - Forward (Vf) (Typ) 1.8V
Power Dissipation 100mW
Configuration Standard
Number of Elements 1
Lead Length 24mm
Base Part Number TLDR5400
Depth 5.8mm
Color Red
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2008
Packaging Bulk

Physical

Supplier Device Package 5mm
Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole

Supply Chain

Factory Lead Time 12 Weeks
