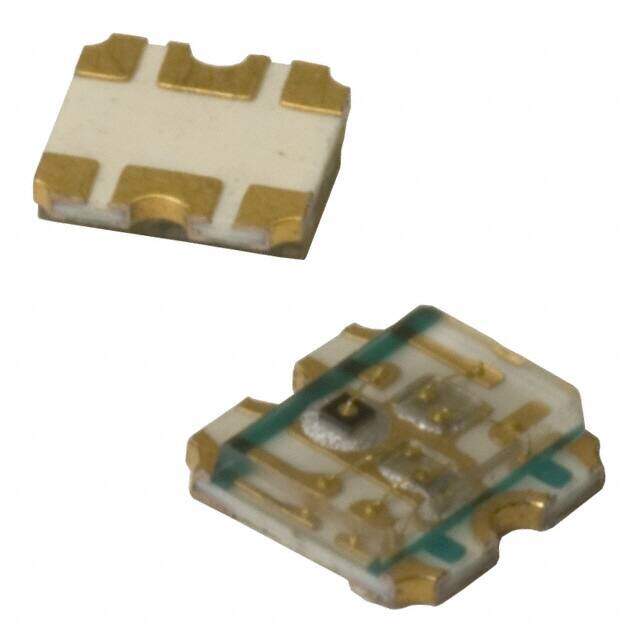

OVSTKGBBCR9
RoHS
/
Package 0606 (1616 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED BLUE/GREEN/ORG CLR CHIP SMD
PDF
/
Inventory: 5878
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height (Max) 0.35mm
Width 1.6mm
Length 1.6mm
Height 350μm
Technical
Wavelength - Dominant 470nm Blue 525nm Green 605nm Orange
Lens Color Colorless
Wavelength - Peak 468nm Blue 518nm Green 611nm Orange
Lens Transparency Clear
Illumination Color Blue, Green, Orange
Millicandela Rating 50mcd Blue, 180mcd Green, 100mcd Orange
Luminous Intensity 100 mcd
Forward Voltage 2V
Lens Size 1.00mmx1.60mm
Lens Style Rectangle with Flat Top
Current - Test 20mA Blue 20mA Green 20mA Orange
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 3.3V Blue 3.3V Green 2V Orange
Configuration Independent
Case Code (Imperial) 0606
Case Code (Metric) 1616
Color Blue, Green, Orange
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Size / Dimension 1.60mm Lx1.60mm W
Published 2005
Packaging Tape & Reel (TR)
Physical
Supplier Device Package Chip LED
Number of Pins 6
Package / Case 0606 (1616 Metric)
Mounting Type Surface Mount
Mount Surface Mount
