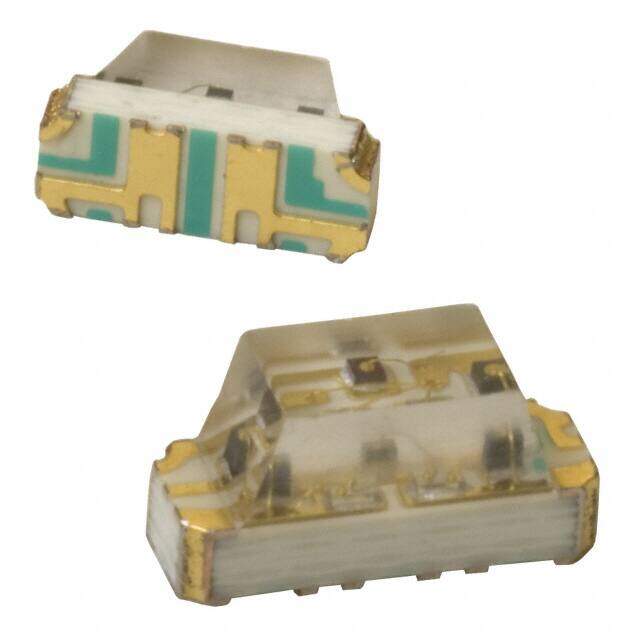

OVSRRGBBC9
RoHS
/
Package 2-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED RGB CLEAR SMD R/A
PDF
/
Inventory: 2033
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Package / Case 2-SMD, No Lead
Supplier Device Package SMD
Technical
Packaging Tape & Reel (TR)
Published 2005
Size / Dimension 2.70mm Lx1.35mm W
Part Status Obsolete
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Max Operating Temperature 90°C
Min Operating Temperature -40°C
Color Red, Green, Blue (RGB)
Configuration Common Anode
Voltage - Forward (Vf) (Typ) 2V Red 3.3V Green 3.3V Blue
Viewing Angle 120°
Current - Test 20mA Red 20mA Green 20mA Blue
Lens Style Rectangle with Flat Top
Lens Size 1.50mmx1.00mm
Forward Voltage 3.3V
Luminous Intensity 45 mcd
Millicandela Rating 72mcd Red, 180mcd Green, 45mcd Blue
Lens Transparency Clear
Wavelength - Peak 632nm Red 518nm Green 468nm Blue
Lens Color Colorless
Wavelength 632 nm
Wavelength - Dominant 623nm Red 525nm Green 470nm Blue
Dimensions
Height 1mm
Length 2.7mm
Width 1.35mm
Height (Max) 1.00mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
