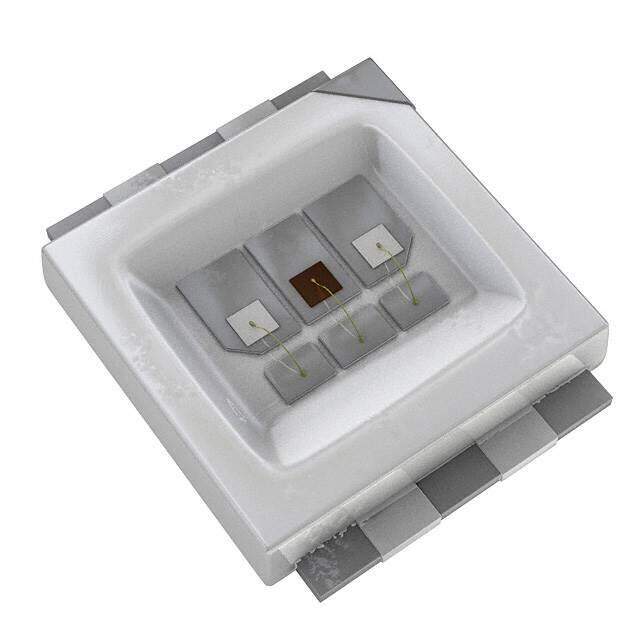

OVSPRGBCR4
RoHS
/
Package 6-SMD, Flat Leads
Category Optoelectronics / LED Indication - Discrete
Description
LED RGB CLEAR 6SMD
PDF
/
Inventory: 7135
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Height (Max) 1.50mm
Width 6mm
Length 6mm
Technical
Wavelength - Dominant 625nm Red 525nm Green 465nm Blue
Wavelength 465 nm
Luminous Flux 13.7 lm
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 9000mcd Red, 14000mcd Green, 3550mcd Blue
Luminous Intensity 3.55 cd
Forward Voltage 3.5V
Lens Style Round with Flat Top
Current - Test 250mA Red 250mA Green 250mA Blue
Forward Current 250mA
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 2.3V Red 3.4V Green 3.4V Blue
Max Current Rating 250mA
Configuration Independent
Number of Elements 3
Depth 6mm
Power Rating 1W
Color Red, Green, Blue (RGB)
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Obsolete
Size / Dimension 6.00mm Lx6.00mm W
Published 2008
Packaging Tape & Reel (TR)
Physical
Supplier Device Package 6-SMD
Number of Pins 6
Package / Case 6-SMD, Flat Leads
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
