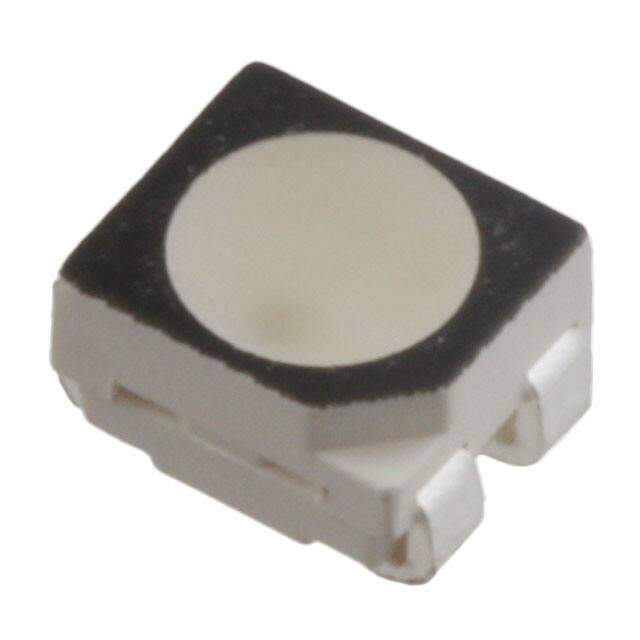

OVSARGB4R8
RoHS
RoHS compliant
RoHS compliantPackage 4-PLCC
Category Optoelectronics / LED Indication - Discrete
Description
LED RGB DIFFUSED 4PLCC SMD
PDF
/
Buying Options
Total Price: USD $1.61
Unit Price: USD $1.6112
≥1 USD $1.6112
≥10 USD $1.3224
≥100 USD $1.2806
≥500 USD $1.23975
≥1000 USD $1.19795
Inventory: 722
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height (Max) 2.10mm
Width 2.8mm
Length 2.8mm
Height 2.1mm
Technical
Wavelength - Dominant 622nm Red 530nm Green 468nm Blue
Reverse Voltage 5V
Lens Transparency Diffused
Millicandela Rating 635mcd Red, 1000mcd Green, 335mcd Blue
Luminous Intensity 335 mcd
Forward Voltage 3.2V
Lens Style Round with Flat Top
Current - Test 20mA Red 20mA Green 20mA Blue
Forward Current 20mA
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 2V Red 3.2V Green 3.2V Blue
Configuration Common Anode
Number of Elements 3
Depth 3.2mm
Max Power Dissipation 130mW
Color Red, Green, Blue (RGB)
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Moisture Sensitivity Level (MSL) 5A (24 Hours)
Part Status Active
Size / Dimension 3.20mm Lx2.80mm W
Published 2011
Packaging Tape & Reel (TR)
Physical
Supplier Device Package 4-PLCC
Number of Pins 4
Package / Case 4-PLCC
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
