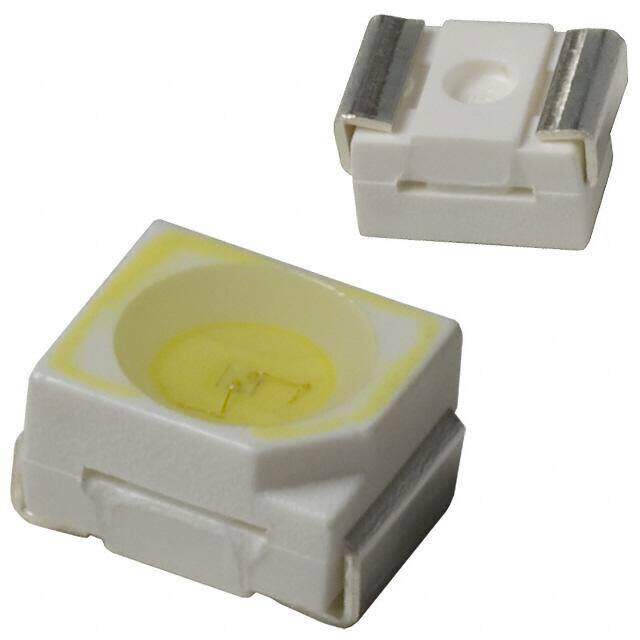

OVS9WBCR4 image
Favorite
RoHS
/
Package 2-PLCC
Category Optoelectronics / LED Indication - Discrete
Description LED WHITE CLEAR 2PLCC SMD
PDF
/
Inventory: 6616
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Height 1.8mm

Technical

Outside Diameter 2.8 mm
Reverse Voltage 5V
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 750mcd
Luminous Intensity 750 mcd
Lens Size 2.40mm Dia
Peak Pulse Current 200mA
Max Reverse Leakage Current 10μA
Lens Style Round with Flat Top
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 3.2V
Power Dissipation 85mW
Configuration Standard
Number of Elements 1
Depth 2.8mm
Terminal Pitch 3mm
Number of Functions 1
Max Power Dissipation 85mW
Packing Method TAPE AND REEL 7"
Color White
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Number of Terminations 2
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Part Status Obsolete
Pbfree Code yes
Size / Dimension 3.20mm Lx2.80mm W
Published 2006
Packaging Tape & Reel (TR)

Physical

Number of Pins 2
Package / Case 2-PLCC
Mounting Type Surface Mount
Mount Surface Mount
