RoHS
/

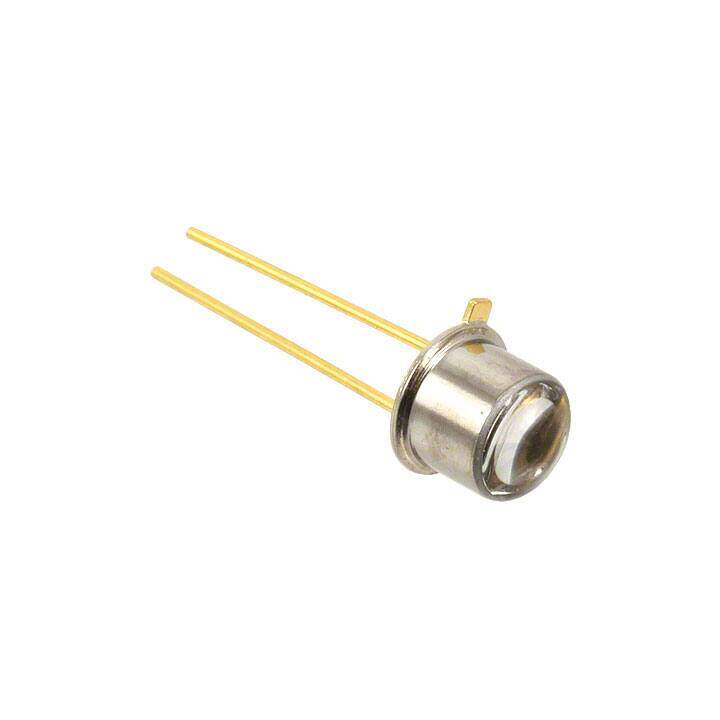

Package TO-46-2 Lens Top Metal Can
Category Optoelectronics / LED Indication - Discrete
Description
LED BLUE CLEAR TO46 T/H
PDF
/
Buying Options
Total Price: USD $38.52
Unit Price: USD $38.524425
≥1 USD $38.524425
≥200 USD $15.371433
≥500 USD $14.858089
≥1000 USD $14.6047
Inventory: 9120
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Height (Max) 4.79mm
Height 4.79mm
Technical
Wavelength - Dominant 465nm
Wavelength 463 nm
Lens Color Colorless
Wavelength - Peak 463nm
Lens Transparency Clear
Illumination Color Blue
Millicandela Rating 2260mcd
Luminous Intensity 2.26 cd
Forward Voltage 2.6V
Lens Size 4.63mm Dia
Lens Style Round with Domed Top
Current - Test 20mA
Forward Current 20mA
Viewing Angle 18°
Voltage - Forward (Vf) (Typ) 2.6V
Configuration Standard
Max Power Dissipation 370mW
Color Blue
Min Operating Temperature -55°C
Max Operating Temperature 100°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Published 2010
Packaging Bulk
Physical
Supplier Device Package TO-46
Number of Pins 2
Package / Case TO-46-2 Lens Top Metal Can
Mounting Type Through Hole
Mount Through Hole
