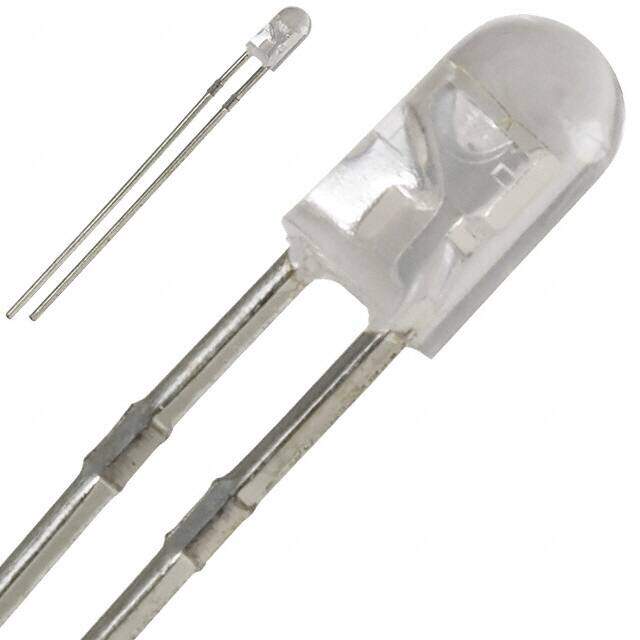

OVLBR4C7
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED RED CLEAR 3MM T/H
PDF
/
Buying Options
Total Price: USD $0.28
Unit Price: USD $0.283702
≥1 USD $0.283702
≥10 USD $0.270304
≥100 USD $0.260788
≥500 USD $0.250326
≥1000 USD $0.241173
Inventory: 33103
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height (Max) 5.35mm
Width 3mm
Length 3mm
Height 5.35mm
Technical
Peak Wavelength 633 nm
Number of LEDs 1
Wavelength - Dominant 623nm
Wavelength 623 nm
Reverse Voltage 5V
Lens Color Colorless
Lens Transparency Clear
Illumination Color Red
Millicandela Rating 3700mcd
Luminous Intensity 1.9 cd
Forward Voltage 2V
Lens Size 3mm T-1
Lens Style Round with Domed Top
Current - Test 20mA
Forward Current 20mA
Viewing Angle 45°
Voltage - Forward (Vf) (Typ) 2V
Power Dissipation 120mW
Configuration Standard
Number of Elements 1
Lead Length 23.9mm
Depth 3mm
Max Power Dissipation 78mW
Color Red
Min Operating Temperature -40°C
Max Operating Temperature 100°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2005
Packaging Bulk
Physical
Supplier Device Package 3mm
Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 8 Weeks
