XZVGT53W-6
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Optoelectronics / LED Indication - Discrete
Description

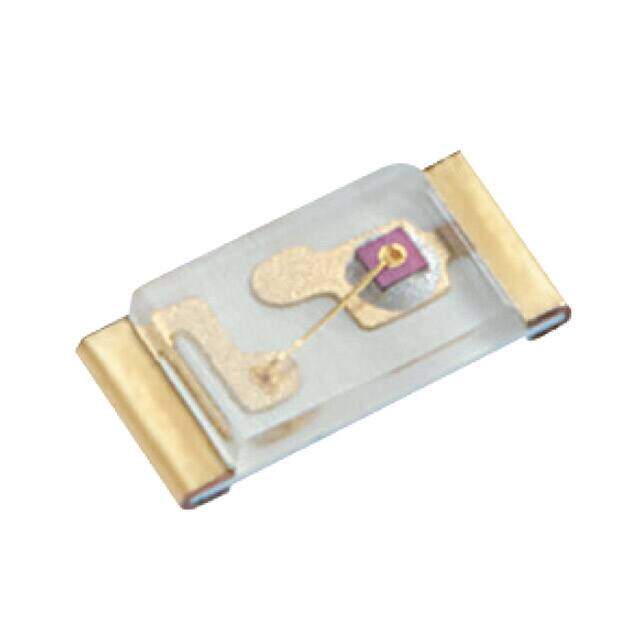

LED GREEN CLEAR 0603 SMD
PDF
/
Buying Options
Total Price: USD $0.3
Unit Price: USD $0.2992
≥1 USD $0.2992
≥10 USD $0.23936
≥100 USD $0.107448
≥500 USD $0.097064
≥1000 USD $0.079728
≥3000 USD $0.069326
Inventory: 1126
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2014
Size / Dimension 1.60mm Lx0.80mm W
Pbfree Code yes
Lens Style Rectangle with Flat Top
Lens Size 1.20mmx0.80mm
Luminous Intensity 49 mcd
Lens Transparency Clear
Wavelength - Peak 574nm
Lens Color Colorless
Forward Current-Max 0.03A
Wavelength - Dominant 570nm
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 2.1V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Case Code (Imperial) 0603
Case Code (Metric) 1608
Terminal Pitch 1.65mm
Number of Functions 1
Packing Method TAPE AND REEL
HTS Code 8541.40.20.00
Color Green
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Dimensions
Height 280μm
Compliance
RoHS Status ROHS3 Compliant
