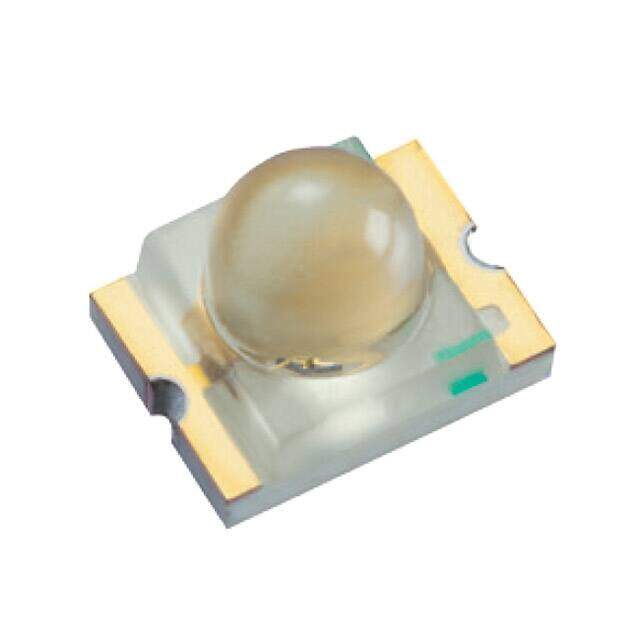

XZVG78W image
Favorite
XZVG78W image
Favorite

XZVG78W

SunLED
RoHS
RoHS RoHS compliant
Package 1209 (3224 Metric)
Category Optoelectronics / LED Indication - Discrete
Description LED GREEN CLEAR 1209 SMD
PDF
/
Buying Options
Total Price: USD $0.41
Unit Price: USD $0.4136
≥1 USD $0.4136
≥10 USD $0.2728
≥100 USD $0.181984
≥500 USD $0.125858
Inventory: 1280
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height 2.4mm

Technical

T-code T-3/4
Wavelength - Dominant 570nm
Forward Current-Max 0.03A
Lens Color Colorless
Wavelength - Peak 574nm
Lens Transparency Clear
Luminous Intensity 597 mcd
Lens Size 1.80mm Dia
Lens Style Round with Domed Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 20°
Voltage - Forward (Vf) (Typ) 2.1V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Case Code (Imperial) 1209
Case Code (Metric) 3224
Terminal Pitch 3.2mm
Number of Functions 1
Packing Method TAPE AND REEL
HTS Code 8541.40.20.00
Color Green
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 3.20mm Lx2.40mm W
Published 2011
Packaging Cut Tape (CT)

Physical

Package / Case 1209 (3224 Metric)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 6 Weeks
