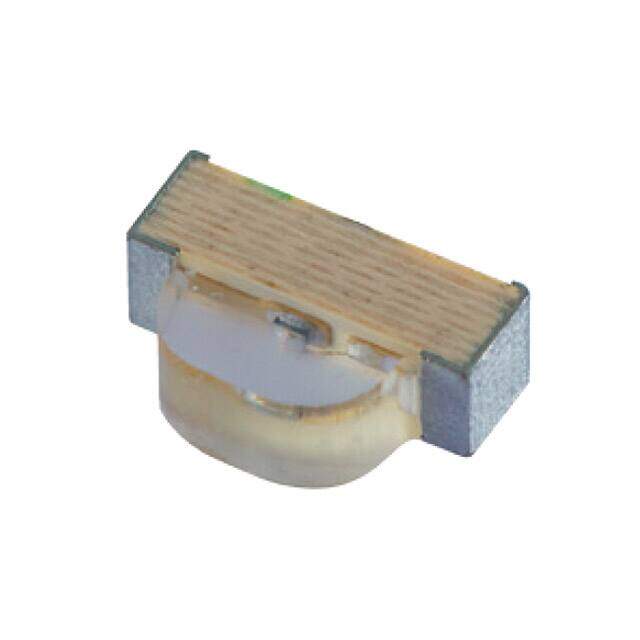

XZUR56W
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED RED CLEAR 2SMD R/A
PDF
/
Buying Options
Total Price: USD $0.33
Unit Price: USD $0.3256
≥1 USD $0.3256
≥10 USD $0.25784
≥100 USD $0.11572
≥500 USD $0.104526
≥1000 USD $0.085862
Inventory: 1139
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 1mm
Technical
Wavelength - Dominant 617nm
Forward Current-Max 0.03A
Lens Color Colorless
Wavelength - Peak 627nm
Lens Transparency Clear
Luminous Intensity 5 mcd
Lens Size 2.00mmx1.00mm
Lens Style Rectangle with Domed Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 2V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Number of Functions 1
Packing Method TAPE AND REEL 7"
HTS Code 8541.40.20.00
Color Red
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 3.00mm Lx2.00mm W
Published 2008
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Package / Case 2-SMD, No Lead
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
