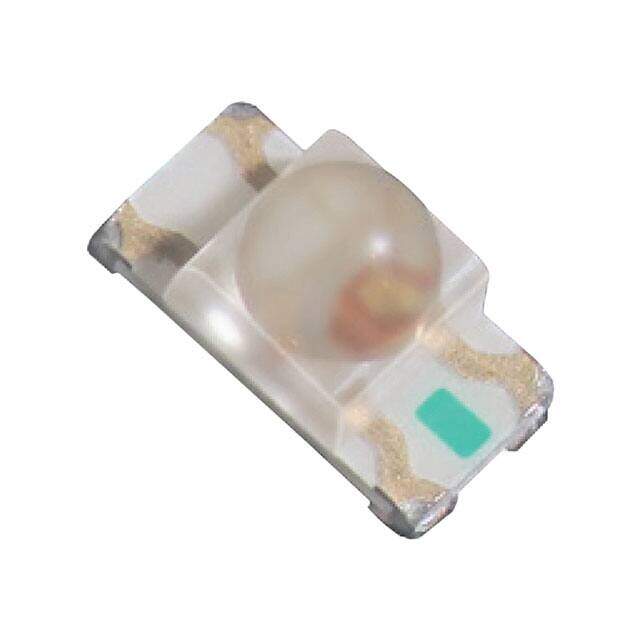

XZMYKVG55W-8
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN/YELLOW CLEAR 4SMD
PDF
/
Buying Options
Total Price: USD $0.55
Unit Price: USD $0.5456
≥1 USD $0.5456
≥10 USD $0.3344
≥100 USD $0.192192
≥500 USD $0.150383
Inventory: 5898
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 2.00mm
Technical
Wavelength - Dominant 570nm Green 590nm Yellow
Overall Height 1.8mm
Forward Current-Max 0.03A
Lens Color Colorless
Wavelength - Peak 574nm Green 590nm Yellow
Lens Transparency Clear
Millicandela Rating 248mcd Green, 597mcd Yellow
Luminous Intensity 695.0/317.0 mcd
Lens Size 1.60mm Dia
Lens Style Round with Domed Top
Current - Test 20mA Green 20mA Yellow
Optoelectronic Device Type DUAL COLOR LED
Viewing Angle 30°
Voltage - Forward (Vf) (Typ) 2.1V Green 2V Yellow
Configuration Independent
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 3.2mm
Number of Functions 2
Packing Method TAPE AND REEL
HTS Code 8541.40.20.00
Color Green, Yellow
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 3.20mm Lx2.80mm W
Published 2016
Packaging Tape & Reel (TR)
Physical
Surface Mount YES
Package / Case 1206 (3216 Metric)
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
