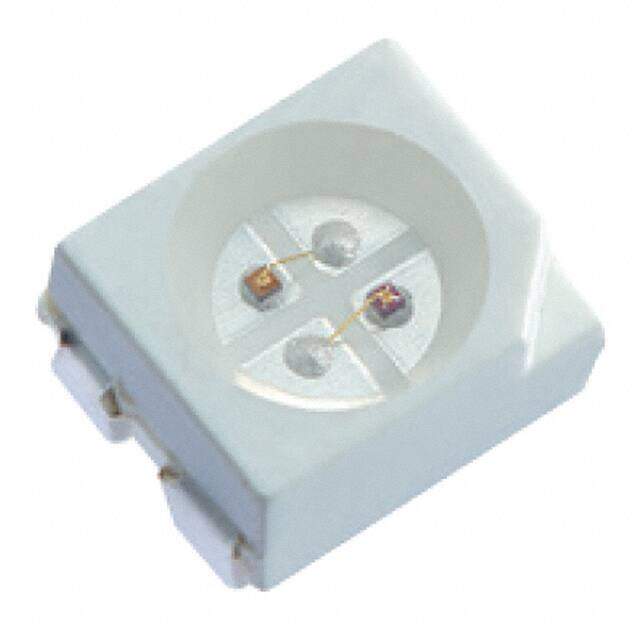

XZMYKVG45S
RoHS
RoHS compliant
RoHS compliantPackage 4-PLCC
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN/YLW CLEAR 4PLCC SMD
PDF
/
Buying Options
Total Price: USD $0.46
Unit Price: USD $0.4576
≥1 USD $0.4576
≥10 USD $0.3036
≥100 USD $0.20064
≥500 USD $0.154915
Inventory: 1158
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-PLCC
Number of Pins 4
Technical
Packaging Cut Tape (CT)
Published 2011
Size / Dimension 3.20mm Lx2.80mm W
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 4
ECCN Code EAR99
Color Green, Yellow
Packing Method TAPE AND REEL
Number of Functions 1
Terminal Pitch 2.8mm
Operating Temperature (Max) 85°C
Configuration Independent
Voltage - Forward (Vf) (Typ) 2.1V Green 2V Yellow
Viewing Angle 120°
Optoelectronic Device Type DUAL COLOR LED
Current - Test 20mA Green 20mA Yellow
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Luminous Intensity 238 mcd
Millicandela Rating 79mcd Green, 238mcd Yellow
Lens Transparency Clear
Wavelength - Peak 574nm Green 590nm Yellow
Lens Color Colorless
Forward Current-Max 0.03A
Wavelength - Dominant 570nm Green 590nm Yellow
Dimensions
Height 2.1mm
Compliance
RoHS Status ROHS3 Compliant
