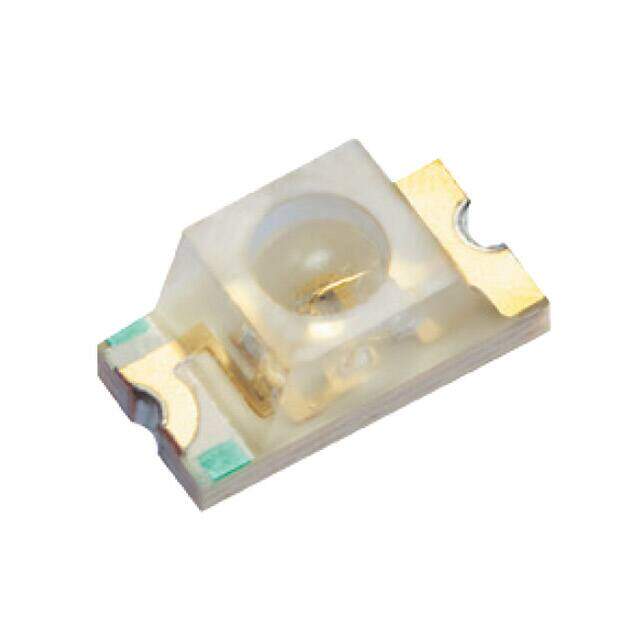

XZMYK60W
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3016 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED YELLOW CLEAR 1206 SMD
PDF
/
Buying Options
Total Price: USD $0.33
Unit Price: USD $0.3256
≥1 USD $0.3256
≥10 USD $0.21296
≥100 USD $0.141856
≥500 USD $0.09812
≥1000 USD $0.08177
Inventory: 1117
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 1.4mm
Technical
Peak Wavelength 590 nm
Wavelength - Dominant 590nm
Forward Current-Max 0.03A
Lens Color Colorless
Lens Transparency Clear
Luminous Intensity 347 mcd
Lens Size 2.00mmx1.50mm
Lens Style Rectangle with Flat Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 70°
Voltage - Forward (Vf) (Typ) 2V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 3mm
Number of Functions 1
Packing Method TAPE AND REEL
HTS Code 8541.40.20.00
Color Yellow
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 3.00mm Lx1.50mm W
Published 2008
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Package / Case 1206 (3016 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
