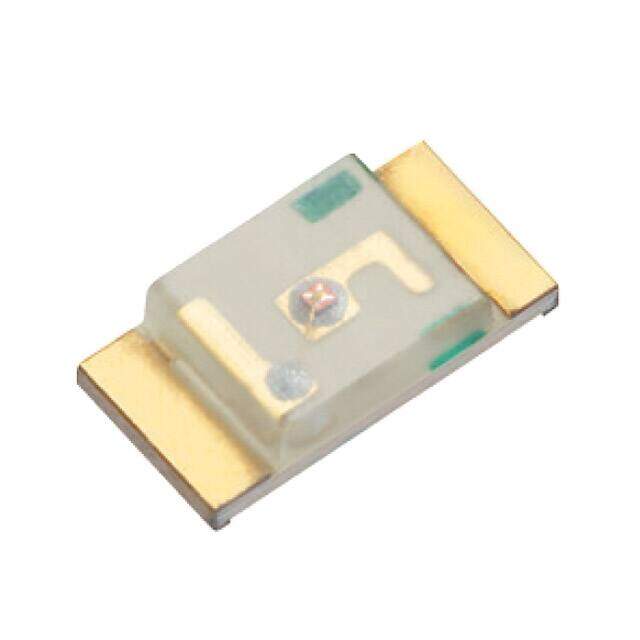

XZMYK55W-1 image
Favorite
XZMYK55W-1 image
Favorite

XZMYK55W-1

SunLED
RoHS
RoHS RoHS compliant
Package 1206 (3216 Metric)
Category Optoelectronics / LED Indication - Discrete
Description LED YELLOW CLEAR CHIP SMD
PDF
/
Buying Options
Total Price: USD $0.27
Unit Price: USD $0.2728
≥1 USD $0.2728
≥10 USD $0.21472
≥100 USD $0.096448
≥500 USD $0.087102
≥1000 USD $0.071544
Inventory: 1936
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric)
Shape RECTANGULAR

Technical

Packaging Cut Tape (CT)
Published 2008
Size / Dimension 3.20mm Lx1.60mm W
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
ECCN Code EAR99
Color Yellow
HTS Code 8541.40.20.00
Packing Method TAPE AND REEL
Number of Functions 1
Terminal Pitch 3.75mm
Case Code (Metric) 3216
Case Code (Imperial) 1206
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 2V
Viewing Angle 120°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 20mA
Lens Style Rectangle with Flat Top
Lens Size 1.90mmx1.60mm
Luminous Intensity 148 mcd
Lens Transparency Clear
Lens Color Colorless
Forward Current-Max 0.03A
Wavelength - Dominant 590nm
Peak Wavelength 590 nm

Dimensions

Height 750μm

Compliance

RoHS Status ROHS3 Compliant
