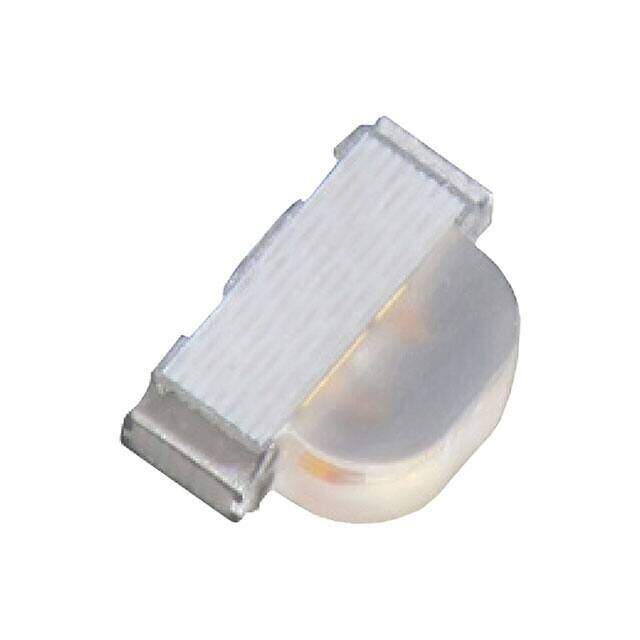

XZMDKDGK56W
RoHS
RoHS compliant
RoHS compliantPackage 3-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED GRN/RED CLEAR 3SMD R/A
PDF
/
Buying Options
Total Price: USD $0.62
Unit Price: USD $0.6248
≥1 USD $0.6248
≥10 USD $0.41272
≥100 USD $0.27324
≥500 USD $0.21098
Inventory: 1149
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 1.15mm
Technical
Wavelength - Dominant 525nm Green 630nm Red
Overall Height 1mm
Forward Current-Max 0.025A
Lens Color Colorless
Wavelength - Peak 515nm Green 645nm Red
Lens Transparency Clear
Millicandela Rating 317mcd Green, 79mcd Red
Luminous Intensity 297.0/317.0 mcd
Lens Size 2.00mmx1.00mm
Lens Style Rectangle with Domed Top
Current - Test 20mA Green 20mA Red
Optoelectronic Device Type DUAL COLOR LED
Viewing Angle 140°
Voltage - Forward (Vf) (Typ) 3.3V Green 1.95V Red
Configuration Common Anode
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Number of Functions 1
Packing Method TR, 7 INCH
Color Green, Red
Number of Terminations 3
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 3.00mm Lx2.00mm W
Published 2016
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Surface Mount YES
Package / Case 3-SMD, No Lead
Mounting Type Surface Mount, Right Angle
Supply Chain
Factory Lead Time 6 Weeks
