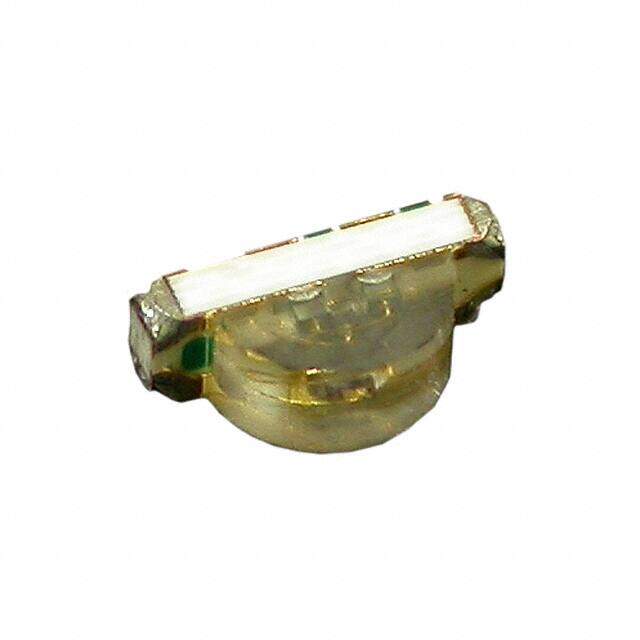

XZMDKDGCBD56W
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED RGB CLEAR CHIP SMD R/A
PDF
/
Buying Options
Total Price: USD $1.3
Unit Price: USD $1.3024
≥1 USD $1.3024
≥10 USD $0.82192
≥100 USD $0.608344
≥500 USD $0.559046
≥1000 USD $0.460398
Inventory: 1095
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Package / Case 4-SMD, No Lead
Technical
Packaging Cut Tape (CT)
Published 2014
Size / Dimension 3.00mm Lx1.50mm W
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Color Red, Green, Blue (RGB)
Configuration Common Anode
Voltage - Forward (Vf) (Typ) 1.95V Red 3.3V Green 3.3V Blue
Viewing Angle 120°
Current - Test 20mA Red 20mA Green 20mA Blue
Lens Style Rectangle with Domed Top
Lens Size 2.00mmx1.00mm
Luminous Intensity 69 mcd
Millicandela Rating 79mcd Red, 297mcd Green, 69mcd Blue
Lens Transparency Clear
Wavelength - Peak 645nm Red 515nm Green 460nm Blue
Lens Color Colorless
Wavelength - Dominant 630nm Red 525nm Green 465nm Blue
Dimensions
Height 1mm
Compliance
RoHS Status ROHS3 Compliant
