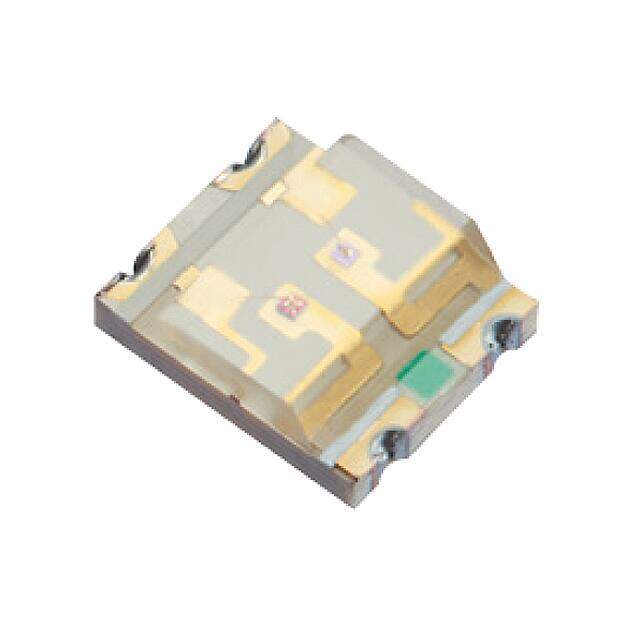

XZMDKCBD57W
RoHS
RoHS compliant
RoHS compliantPackage 1210 (3125 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED BLUE/RED CLEAR 4SMD
PDF
/
Inventory: 9433
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 1.1mm
Technical
Wavelength - Dominant 465nm Blue 630nm Red
Forward Current-Max 0.03A
Lens Color Colorless
Wavelength - Peak 460nm Blue 645nm Red
Lens Transparency Clear
Millicandela Rating 79mcd Blue, 69mcd Red
Luminous Intensity 69 mcd
Lens Size 1.50mmx2.50mm
Lens Style Rectangle with Flat Top
Current - Test 20mA Blue 20mA Red
Optoelectronic Device Type DUAL COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 3.3V Blue 1.95V Red
Configuration Independent
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 2.7mm
Number of Functions 1
Packing Method TAPE AND REEL
HTS Code 8541.40.20.00
Color Blue, Red
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 3.00mm Lx2.50mm W
Published 2011
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Package / Case 1210 (3125 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
