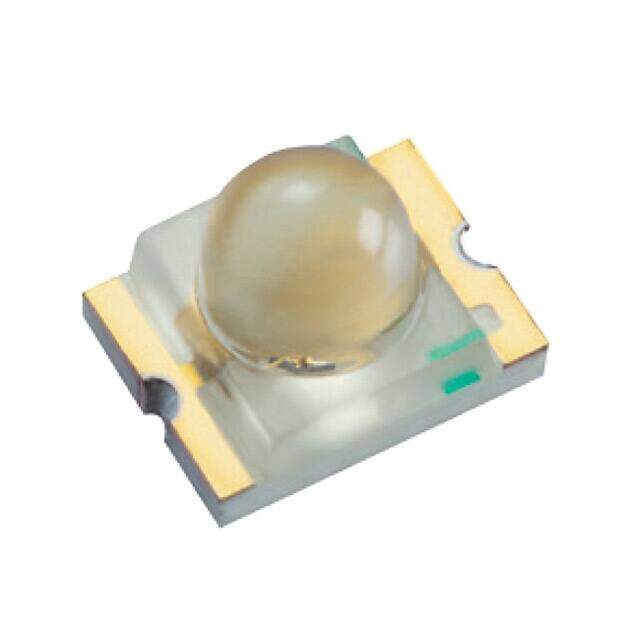

XZMDK78W
RoHS
RoHS compliant
RoHS compliantPackage 1209 (3224 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED RED CLEAR CHIP SMD
PDF
/
Buying Options
Total Price: USD $0.41
Unit Price: USD $0.4136
≥1 USD $0.4136
≥10 USD $0.2728
≥100 USD $0.181984
≥500 USD $0.125858
Inventory: 1280
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 2.4mm
Technical
Wavelength - Dominant 630nm
Lens Color Colorless
Wavelength - Peak 645nm
Lens Transparency Clear
Millicandela Rating 1495mcd
Luminous Intensity 1.495 cd
Lens Size 1.80mm Dia
Lens Style Round with Domed Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 20°
Voltage - Forward (Vf) (Typ) 1.95V
Configuration Standard
Case Code (Imperial) 1209
Case Code (Metric) 3224
Color Red
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 3.20mm Lx2.40mm W
Published 2014
Packaging Cut Tape (CT)
Physical
Package / Case 1209 (3224 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
