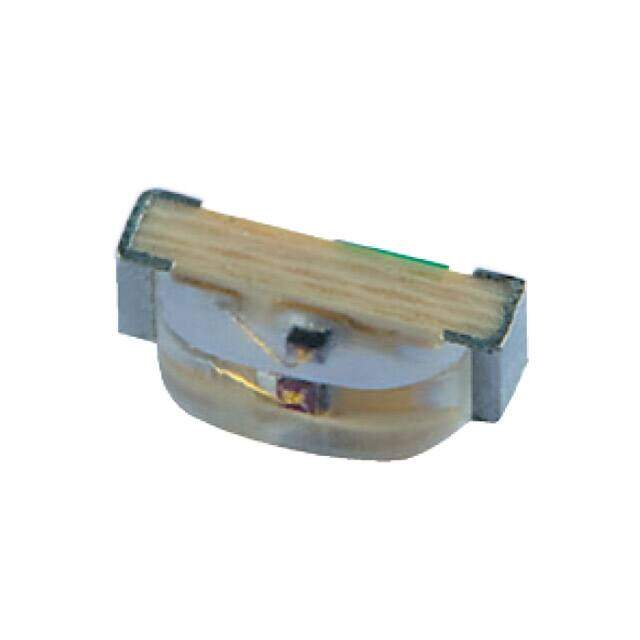

XZMDK74W
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED RED CLEAR 2SMD R/A
PDF
/
Buying Options
Total Price: USD $0.33
Unit Price: USD $0.3256
≥1 USD $0.3256
≥10 USD $0.21296
≥100 USD $0.141856
≥500 USD $0.09812
≥1000 USD $0.08177
Inventory: 5896
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 600μm
Technical
Wavelength - Dominant 630nm
Forward Current-Max 0.03A
Lens Color Colorless
Wavelength - Peak 645nm
Lens Transparency Clear
Luminous Intensity 79 mcd
Lens Size 1.70mmx0.60mm
Lens Style Rectangle with Domed Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 1.95V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 2.6mm
Number of Functions 1
Packing Method TAPE AND REEL
HTS Code 8541.40.20.00
Color Red
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 2.10mm Lx1.00mm W
Published 2014
Packaging Cut Tape (CT)
Physical
Shape RECTANGULAR
Package / Case 2-SMD, No Lead
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
