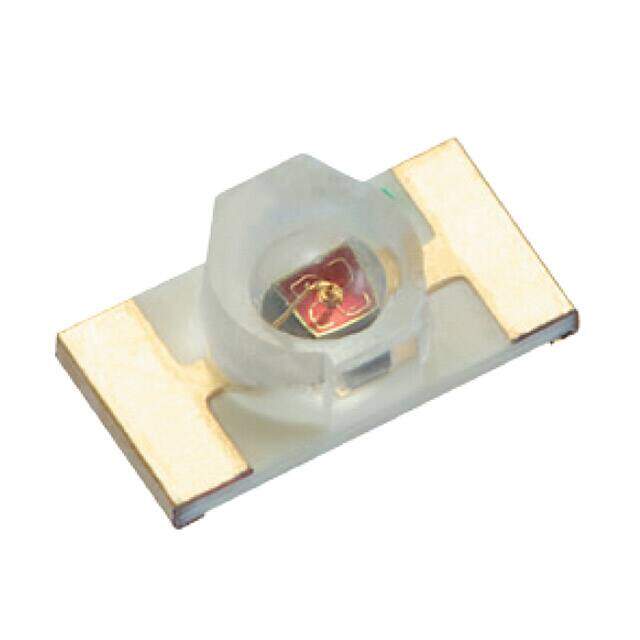

XZMDK55W-A2
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED RED CLEAR 1206 SMD
PDF
/
Buying Options
Total Price: USD $0.39
Unit Price: USD $0.3872
≥1 USD $0.3872
≥10 USD $0.25432
≥100 USD $0.169664
≥500 USD $0.117322
≥1000 USD $0.097768
Inventory: 1171
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric)
Technical
Packaging Tape & Reel (TR)
Published 2009
Size / Dimension 3.20mm Lx1.60mm W
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
ECCN Code EAR99
Color Red
HTS Code 8541.40.20.00
Packing Method TAPE AND REEL
Number of Functions 1
Terminal Pitch 3.4mm
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 1.95V
Viewing Angle 70°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 20mA
Lens Style Round with Flat Top
Lens Size 1.60mm Dia
Luminous Intensity 228 mcd
Lens Transparency Clear
Wavelength - Peak 645nm
Lens Color Colorless
Forward Current-Max 0.03A
Wavelength - Dominant 630nm
Dimensions
Height 1.1mm
Compliance
RoHS Status ROHS3 Compliant
