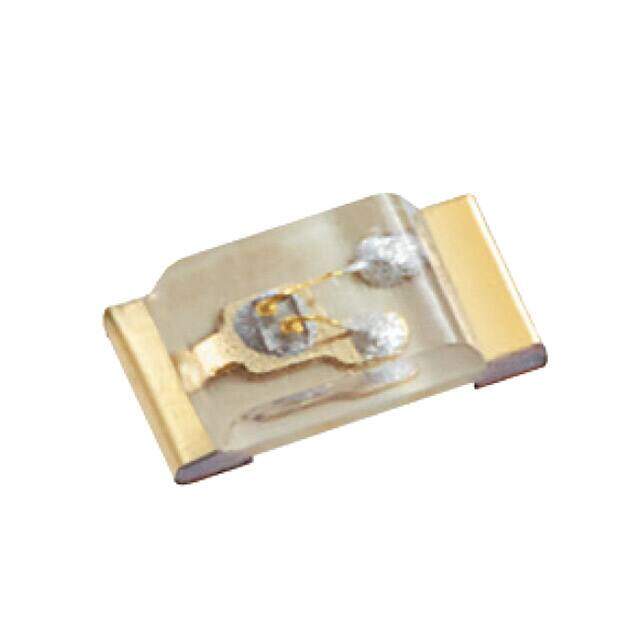

XZMDK53W-3
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED RED CLEAR 0603 SMD
PDF
/
Buying Options
Total Price: USD $0.26
Unit Price: USD $0.264
≥1 USD $0.264
≥10 USD $0.20856
≥100 USD $0.09372
≥500 USD $0.084621
≥1000 USD $0.069502
Inventory: 1183
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 450μm
Technical
Wavelength - Dominant 630nm
Forward Current-Max 0.03A
Lens Color Colorless
Wavelength - Peak 645nm
Lens Transparency Clear
Luminous Intensity 79 mcd
Lens Size 1.10mmx0.80mm
Lens Style Rectangle with Flat Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 1.95V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Case Code (Imperial) 0603
Case Code (Metric) 1608
Terminal Pitch 1.65mm
Number of Functions 1
Packing Method TAPE AND REEL
HTS Code 8541.40.20.00
Color Red
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 1.60mm Lx0.80mm W
Published 2008
Packaging Cut Tape (CT)
Physical
Shape RECTANGULAR
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
