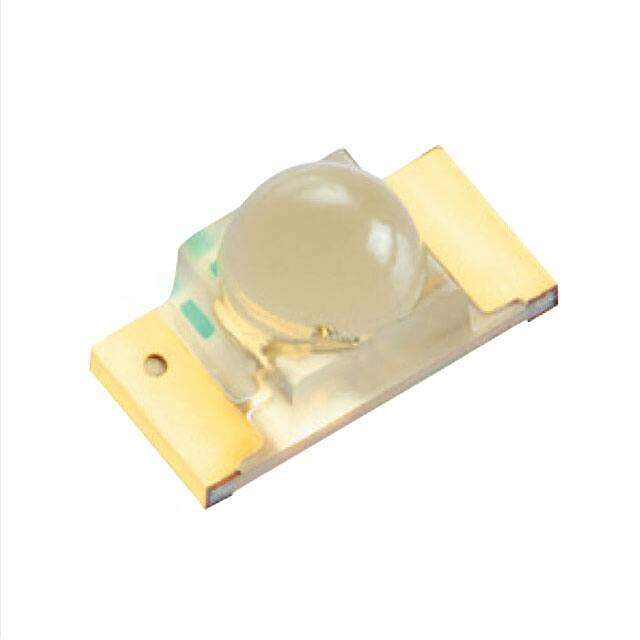

XZM2MR55W-3 image
Favorite
XZM2MR55W-3 image
Favorite

XZM2MR55W-3

SunLED
RoHS
RoHS RoHS compliant
Package 1206 (3216 Metric)
Category Optoelectronics / LED Indication - Discrete
Description LED RED CLEAR 2SMD
PDF
/
Buying Options
Total Price: USD $0.61
Unit Price: USD $0.6072
≥1 USD $0.6072
≥10 USD $0.40128
≥100 USD $0.265584
≥500 USD $0.205084
Inventory: 1195
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Mounting Type Surface Mount
Package / Case 1206 (3216 Metric)
Surface Mount YES

Technical

Packaging Tape & Reel (TR)
Series PX Series
Size / Dimension 3.20mm Lx1.60mm W
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
Color Red
Packing Method TR, 7 INCH
Number of Functions 1
Terminal Pitch 3.75mm
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 2.1V
Viewing Angle 40°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 20mA
Lens Style Round with Domed Top
Lens Size 1.60mm Dia
Luminous Intensity 2890.0 mcd
Millicandela Rating 1095mcd
Lens Transparency Clear
Wavelength - Peak 660nm
Lens Color Colorless
Forward Current-Max 0.03A
Overall Height 1.8mm
Wavelength - Dominant 640nm

Dimensions

Height (Max) 2.10mm

Compliance

RoHS Status ROHS3 Compliant
