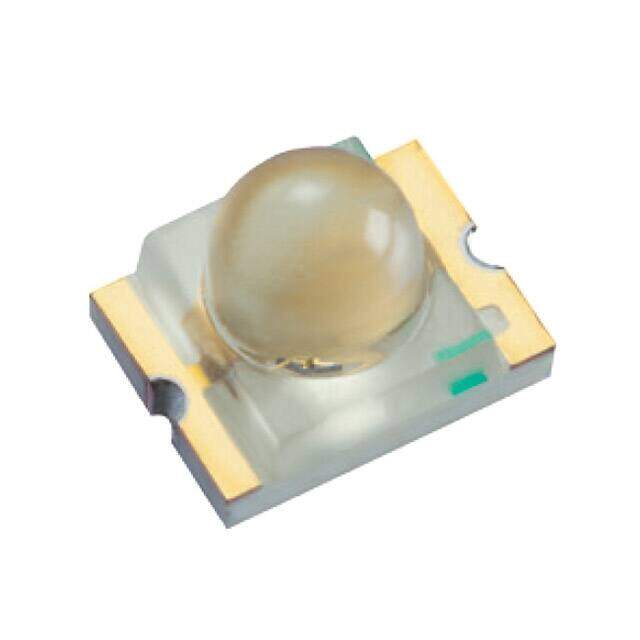

XZM2MOK78W
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED ORANGE CLEAR 2SMD
PDF
/
Inventory: 9482
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 2.4mm
Technical
T-code T-3/4
Wavelength - Dominant 605nm
Forward Current-Max 0.03A
Lens Color Colorless
Wavelength - Peak 611nm
Lens Transparency Clear
Millicandela Rating 3790mcd
Luminous Intensity 3.79 cd
Lens Size 1.80mm Dia
Lens Style Round with Domed Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 20°
Voltage - Forward (Vf) (Typ) 2.2V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 3.2mm
Number of Functions 1
Packing Method TR, 7 INCH
HTS Code 8541.40.20.00
Color Orange
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 3.20mm Lx2.40mm W
Series VersoLED
Published 2014
Packaging Tape & Reel (TR)
Physical
Package / Case 2-SMD, No Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
