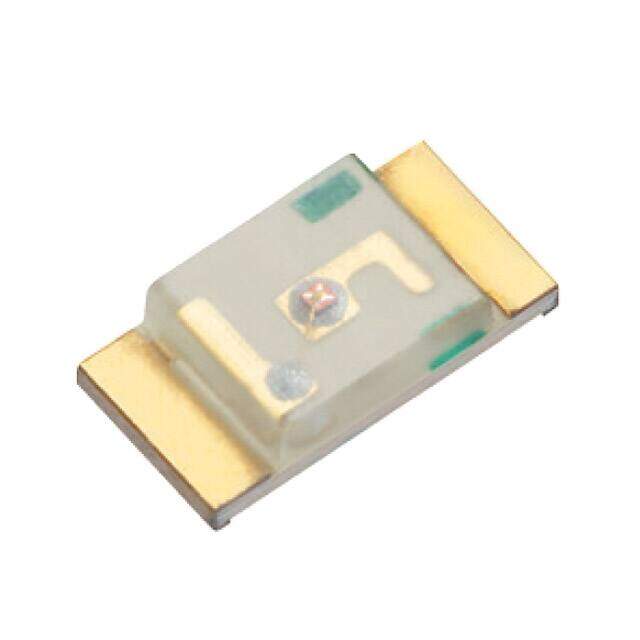

XZM2DG55W-1
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN CLEAR 1206 SMD
PDF
/
Buying Options
Total Price: USD $0.85
Unit Price: USD $0.8536
≥1 USD $0.8536
≥10 USD $0.55704
≥100 USD $0.36476
≥500 USD $0.287971
Inventory: 1080
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric)
Technical
Packaging Cut Tape (CT)
Published 2011
Series HRS
Size / Dimension 3.20mm Lx1.60mm W
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Color Green
HTS Code 8541.40.20.00
Case Code (Metric) 3216
Case Code (Imperial) 1206
Configuration Standard
Voltage - Forward (Vf) (Typ) 3.2V
Viewing Angle 120°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 20mA
Lens Style Rectangle with Flat Top
Lens Size 1.90mmx1.60mm
Luminous Intensity 745 mcd
Lens Transparency Clear
Wavelength - Peak 520nm
Lens Color Colorless
Wavelength - Dominant 525nm
Dimensions
Height 750μm
Compliance
RoHS Status ROHS3 Compliant
