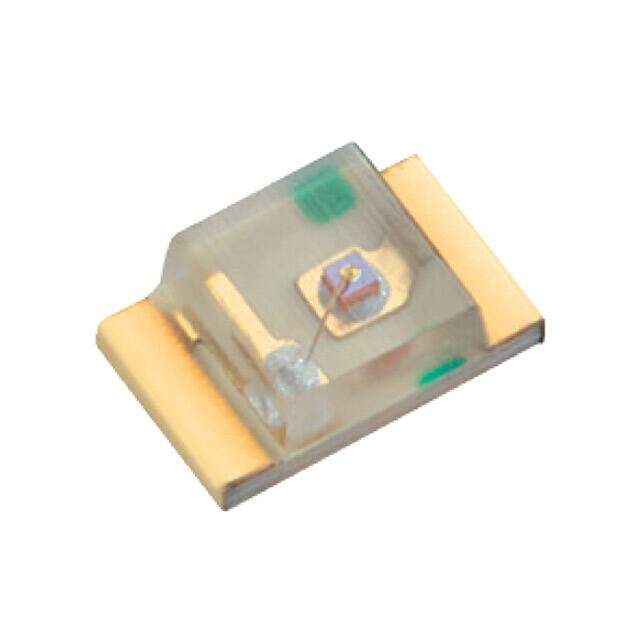

XZM2DG54W-1
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN CLEAR 0805 SMD
PDF
/
Inventory: 9167
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Technical
Packaging Tape & Reel (TR)
Published 2011
Size / Dimension 2.00mm Lx1.25mm W
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Color Green
Configuration Standard
Voltage - Forward (Vf) (Typ) 3.2V
Viewing Angle 120°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 20mA
Lens Style Rectangle with Flat Top
Lens Size 1.20mmx1.25mm
Luminous Intensity 745 mcd
Lens Transparency Clear
Wavelength - Peak 520nm
Lens Color Colorless
Wavelength - Dominant 525nm
Dimensions
Height 750μm
Compliance
RoHS Status ROHS3 Compliant
