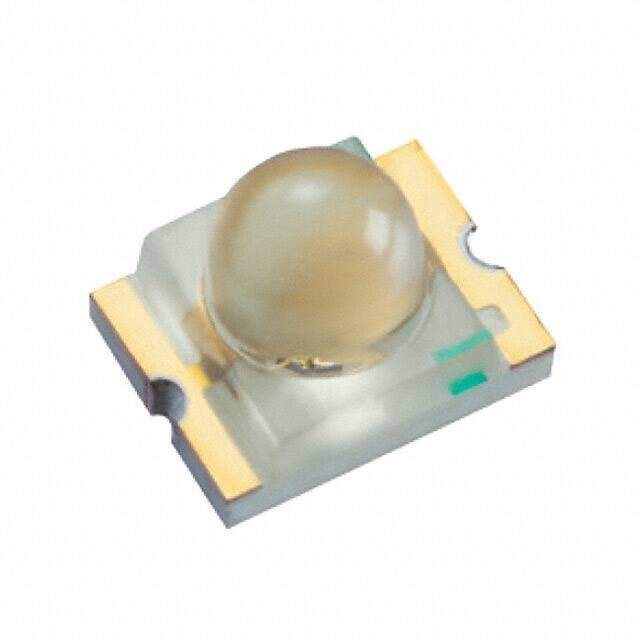

XZM2CYK78W
RoHS
RoHS compliant
RoHS compliantPackage 1209 (3224 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED YELLOW CLEAR 2SMD
PDF
/
Buying Options
Total Price: USD $0.48
Unit Price: USD $0.4752
≥1 USD $0.4752
≥10 USD $0.3124
≥100 USD $0.20636
Inventory: 1181
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 2.4mm
Technical
Peak Wavelength 590 nm
T-code T-3/4
Wavelength - Dominant 590nm
Forward Current-Max 0.03A
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 3290mcd
Luminous Intensity 3.29 cd
Lens Size 1.80mm Dia
Lens Style Round with Domed Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 20°
Voltage - Forward (Vf) (Typ) 2V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Case Code (Imperial) 1209
Case Code (Metric) 3224
Terminal Pitch 3.2mm
Number of Functions 1
Packing Method TR, 7 INCH
HTS Code 8541.40.20.00
Color Yellow
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 3.20mm Lx2.40mm W
Series VersoLED
Published 2014
Packaging Tape & Reel (TR)
Physical
Package / Case 1209 (3224 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
