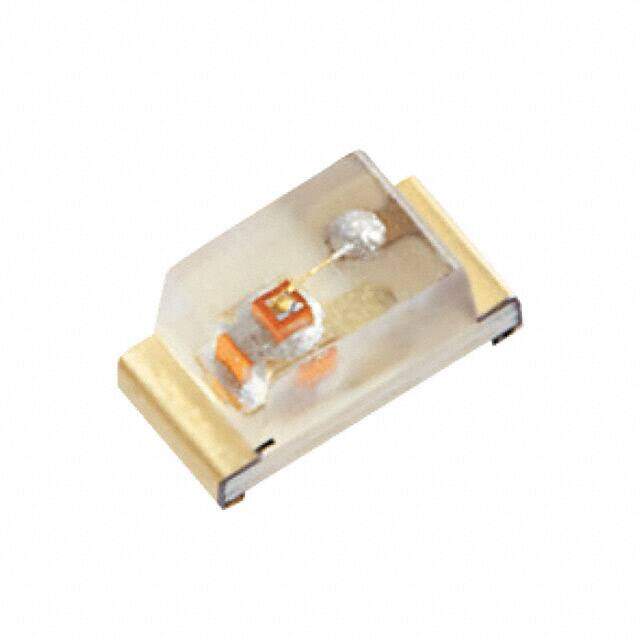

XZM2CYK53W-1
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED YELLOW CLEAR 0603 SMD
PDF
/
Buying Options
Total Price: USD $0.51
Unit Price: USD $0.5104
≥1 USD $0.5104
≥10 USD $0.3168
≥100 USD $0.181896
≥500 USD $0.142384
Inventory: 1283
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 750μm
Technical
Peak Wavelength 590 nm
Wavelength - Dominant 590nm
Forward Current-Max 0.03A
Lens Color Colorless
Lens Transparency Clear
Luminous Intensity 317 mcd
Lens Size 1.10mmx0.80mm
Lens Style Rectangle with Flat Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 2V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Case Code (Imperial) 0603
Case Code (Metric) 1608
Terminal Pitch 1.65mm
Number of Functions 1
Packing Method TR, 7 INCH
Color Yellow
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 1.60mm Lx0.80mm W
Published 2014
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
