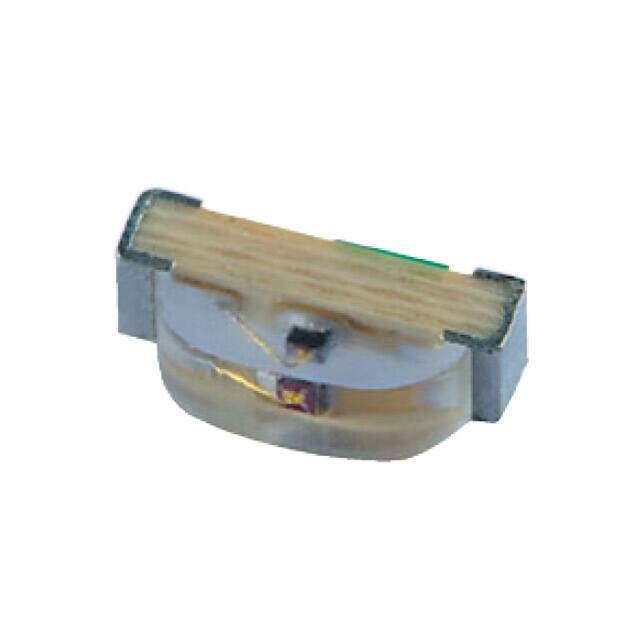

XZM2CRK74W
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED RED CLEAR 2SMD R/A
PDF
/
Buying Options
Total Price: USD $0.46
Unit Price: USD $0.4576
≥1 USD $0.4576
≥10 USD $0.3036
≥100 USD $0.20064
≥500 USD $0.154915
Inventory: 1269
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Package / Case 2-SMD, No Lead
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2014
Size / Dimension 2.10mm Lx1.00mm W
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
Color Red
Packing Method TR, 7 INCH
Number of Functions 1
Terminal Pitch 2.4mm
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 2.2V
Viewing Angle 120°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 20mA
Lens Style Rectangle with Domed Top
Lens Size 1.70mmx0.60mm
Wavelength - Dominant 625nm
Forward Current-Max 0.03A
Lens Color Colorless
Wavelength - Peak 640nm
Lens Transparency Clear
Luminous Intensity 377 mcd
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 600μm
