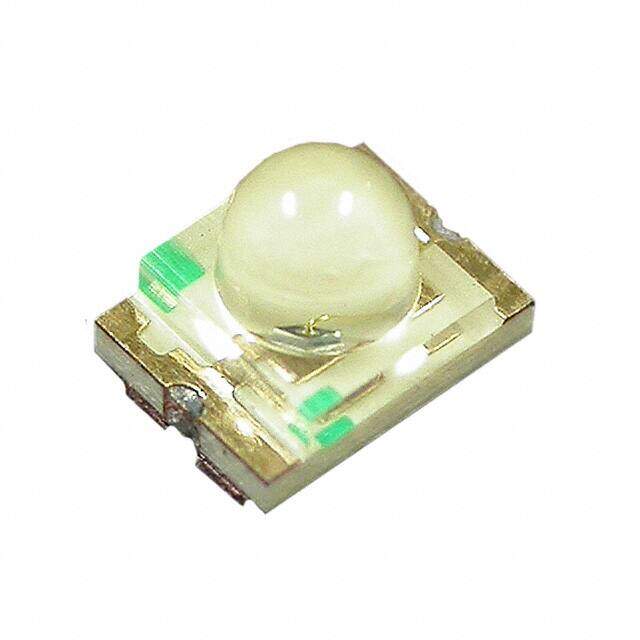

XZM2ACY78W image
Favorite
XZM2ACY78W image
Favorite

XZM2ACY78W

SunLED
RoHS
RoHS RoHS compliant
Package 1209 (3224 Metric)
Category Optoelectronics / LED Indication - Discrete
Description LED YELLOW CLEAR 1209 SMD
PDF
/
Buying Options
Total Price: USD $0.47
Unit Price: USD $0.4664
≥1 USD $0.4664
≥10 USD $0.30624
≥100 USD $0.20064
Inventory: 1165
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1209 (3224 Metric)

Technical

Packaging Cut Tape (CT)
Published 2011
Size / Dimension 3.20mm Lx2.40mm W
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
ECCN Code EAR99
Color Yellow
HTS Code 8541.40.20.00
Packing Method TAPE AND REEL
Number of Functions 1
Terminal Pitch 3.2mm
Case Code (Metric) 3224
Case Code (Imperial) 1209
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 2V
Peak Wavelength 590 nm
T-code T-3/4
Wavelength - Dominant 590nm
Forward Current-Max 0.03A
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 3590mcd
Luminous Intensity 3.59 cd
Lens Size 1.80mm Dia
Lens Style Round with Domed Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 20°

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height 2.4mm
