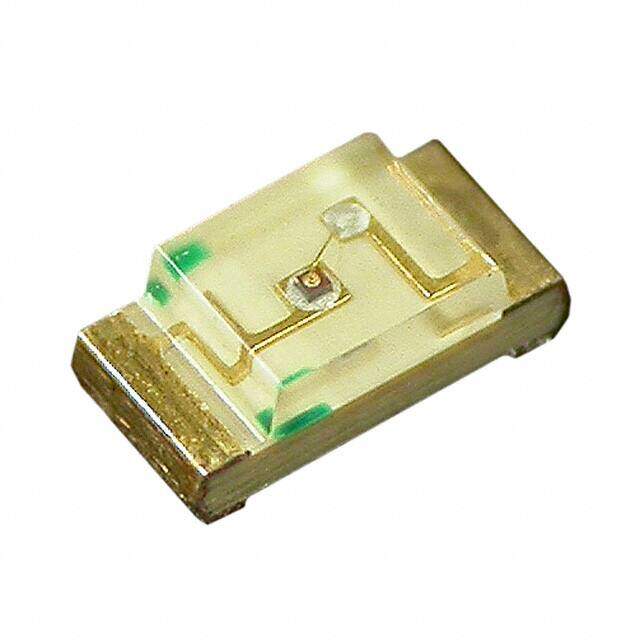

XZM2ACY55W-1 image
Favorite
XZM2ACY55W-1 image
Favorite

XZM2ACY55W-1

SunLED
RoHS
RoHS RoHS compliant
Package 1206 (3216 Metric)
Category Optoelectronics / LED Indication - Discrete
Description LED YELLOW CLEAR 1206 SMD
PDF
/
Buying Options
Total Price: USD $0.61
Unit Price: USD $0.6072
≥1 USD $0.6072
≥10 USD $0.39688
≥100 USD $0.26004
≥500 USD $0.205313
Inventory: 1091
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height 750μm

Technical

Peak Wavelength 590 nm
Wavelength - Dominant 590nm
Forward Current-Max 0.03A
Lens Color Colorless
Lens Transparency Clear
Luminous Intensity 347 mcd
Lens Size 1.90mmx1.60mm
Lens Style Rectangle with Flat Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 2V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Case Code (Imperial) 1206
Case Code (Metric) 3216
Terminal Pitch 3.75mm
Number of Functions 1
Packing Method TAPE AND REEL
HTS Code 8541.40.20.00
Color Yellow
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 3.20mm Lx1.60mm W
Published 2008
Packaging Cut Tape (CT)

Physical

Shape RECTANGULAR
Package / Case 1206 (3216 Metric)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 6 Weeks
