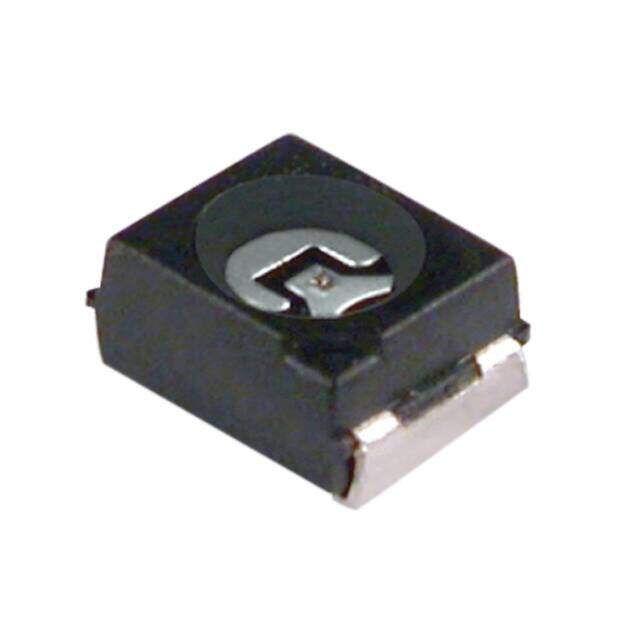

XZM2ACY45SB
RoHS
RoHS compliant
RoHS compliantPackage 2-PLCC
Category Optoelectronics / LED Indication - Discrete
Description
LED YELLOW CLEAR 2PLCC SMD
PDF
/
Inventory: 6782
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 2.1mm
Technical
Peak Wavelength 590 nm
Wavelength - Dominant 590nm
Forward Current-Max 0.05A
Lens Color Colorless
Lens Transparency Clear
Luminous Intensity 317 mcd
Lens Size 2.40mm Dia
Lens Style Round with Flat Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 2V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 3.1mm
Number of Functions 1
Packing Method TAPE AND REEL
Color Yellow
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Discontinued
Pbfree Code yes
Size / Dimension 3.20mm Lx2.80mm W
Series NINJA
Published 2010
Packaging Cut Tape (CT)
Physical
Number of Pins 2
Package / Case 2-PLCC
Mounting Type Surface Mount
Mount Surface Mount
