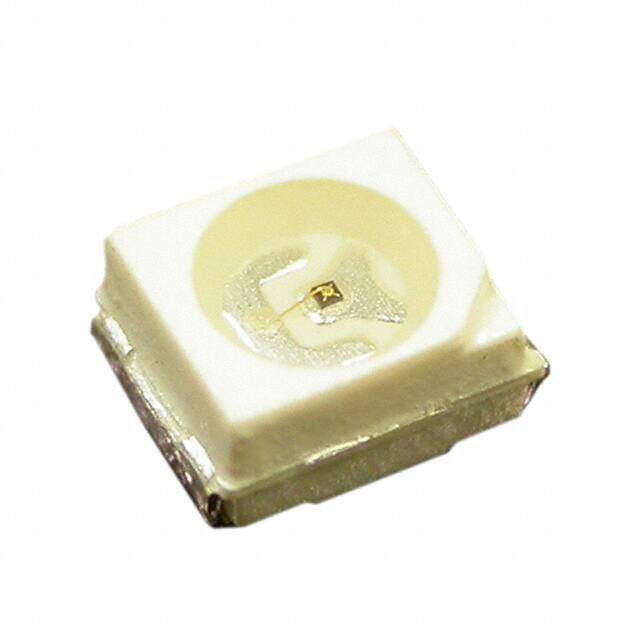

XZM2ACY45S
RoHS
RoHS compliant
RoHS compliantPackage 2-PLCC
Category Optoelectronics / LED Indication - Discrete
Description
LED YELLOW CLEAR 2PLCC SMD
PDF
/
Buying Options
Total Price: USD $0.61
Unit Price: USD $0.6072
≥1 USD $0.6072
≥10 USD $0.39688
≥100 USD $0.26004
≥500 USD $0.205313
Inventory: 6068
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2-PLCC
Number of Pins 2
Technical
Packaging Cut Tape (CT)
Published 2011
Size / Dimension 3.20mm Lx2.80mm W
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
ECCN Code EAR99
Color Yellow
Packing Method TAPE AND REEL
Number of Functions 1
Terminal Pitch 3.1mm
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 2V
Viewing Angle 120°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 20mA
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Luminous Intensity 497 mcd
Lens Transparency Clear
Lens Color Colorless
Forward Current-Max 0.05A
Wavelength - Dominant 590nm
Peak Wavelength 590 nm
Dimensions
Height 2.1mm
Compliance
RoHS Status ROHS3 Compliant
