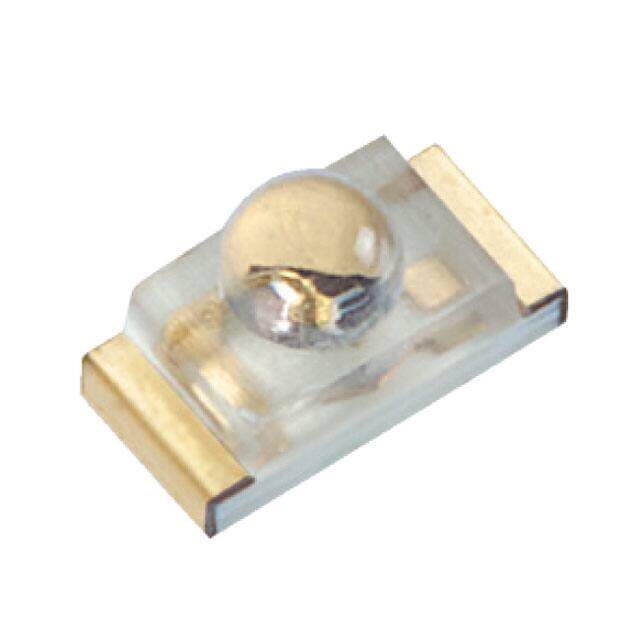

XZM2ACR53W-8 image
Favorite
XZM2ACR53W-8 image
Favorite

XZM2ACR53W-8

SunLED
RoHS
RoHS RoHS compliant
Package 0603 (1608 Metric)
Category Optoelectronics / LED Indication - Discrete
Description LED RED CLEAR CHIP SMD
PDF
/
Buying Options
Total Price: USD $0.62
Unit Price: USD $0.6248
≥1 USD $0.6248
≥10 USD $0.41272
≥100 USD $0.27324
≥500 USD $0.21098
Inventory: 4185
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height 950μm

Technical

Wavelength - Dominant 625nm
Forward Current-Max 0.03A
Lens Color Colorless
Wavelength - Peak 640nm
Lens Transparency Clear
Luminous Intensity 895 mcd
Lens Size 0.35mm Dia
Lens Style Round with Domed Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 60°
Voltage - Forward (Vf) (Typ) 2.2V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Case Code (Imperial) 0603
Case Code (Metric) 1608
Terminal Pitch 1.65mm
Number of Functions 1
Packing Method TAPE AND REEL
HTS Code 8541.40.20.00
Color Red
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 1.60mm Lx0.80mm W
Series PixsoLED
Published 2011
Packaging Cut Tape (CT)

Physical

Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 6 Weeks
