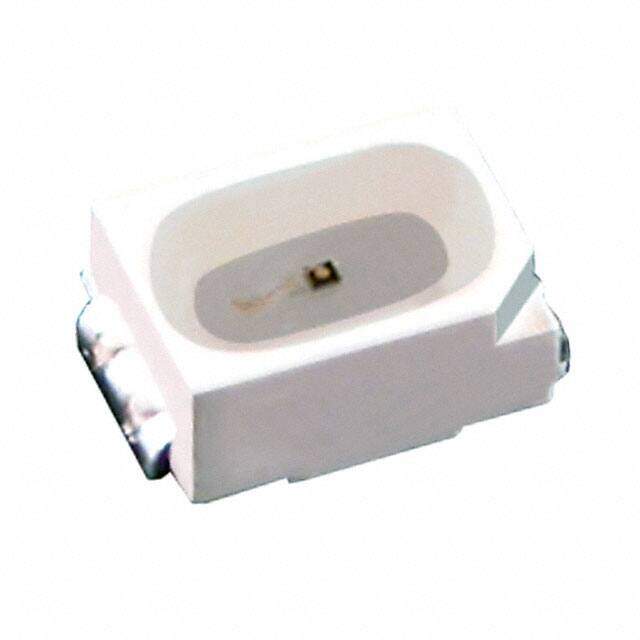

XZM2ACR105S
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, J-Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED RED 625NM 2SMD
PDF
/
Buying Options
Total Price: USD $0.61
Unit Price: USD $0.6072
≥1 USD $0.6072
≥10 USD $0.39688
≥100 USD $0.26004
≥500 USD $0.205313
Inventory: 1160
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 1.3mm
Technical
Wavelength - Dominant 625nm
Forward Current-Max 0.03A
Lens Color Colorless
Wavelength - Peak 640nm
Lens Transparency Clear
Luminous Intensity 497 mcd
Lens Size 2.50mmx1.50mm
Lens Style Oval with Flat Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 125°
Voltage - Forward (Vf) (Typ) 2.2V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 2.8mm
Number of Functions 1
Packing Method TAPE AND REEL
HTS Code 8541.40.20.00
Color Red
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 2.70mm Lx2.00mm W
Published 2014
Packaging Cut Tape (CT)
Physical
Shape RECTANGULAR
Package / Case 2-SMD, J-Lead
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
