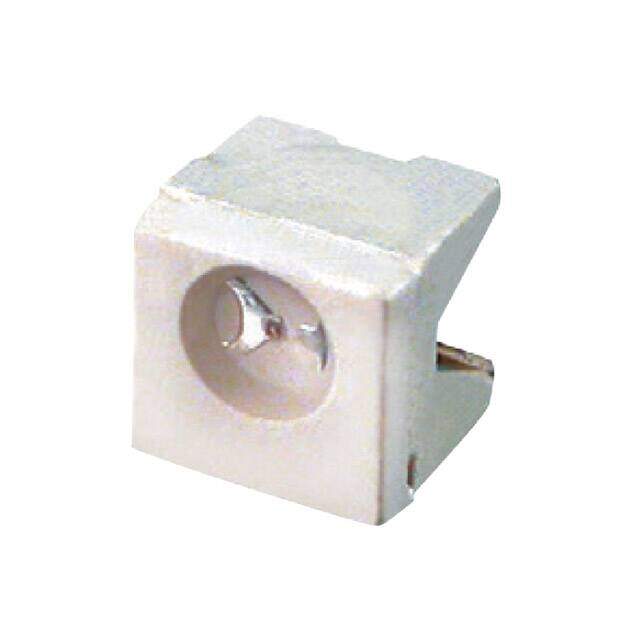

XZFBB67S
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, Boomerang
Category Optoelectronics / LED Indication - Discrete
Description
LED BLUE CLEAR 2SMD R/A
PDF
/
Inventory: 4990
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Package / Case 2-SMD, Boomerang
Technical
Packaging Tape & Reel (TR)
Published 2011
Size / Dimension 4.00mm Lx3.60mm W
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
ECCN Code EAR99
Color Blue
HTS Code 8541.40.20.00
Packing Method TAPE AND REEL
Number of Functions 1
Terminal Pitch 2.5mm
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 3.3V
Viewing Angle 120°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 20mA
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Luminous Intensity 497 mcd
Lens Transparency Clear
Wavelength - Peak 465nm
Lens Color Colorless
Forward Current-Max 0.03A
Wavelength - Dominant 470nm
Dimensions
Height 4mm
Compliance
RoHS Status ROHS3 Compliant
