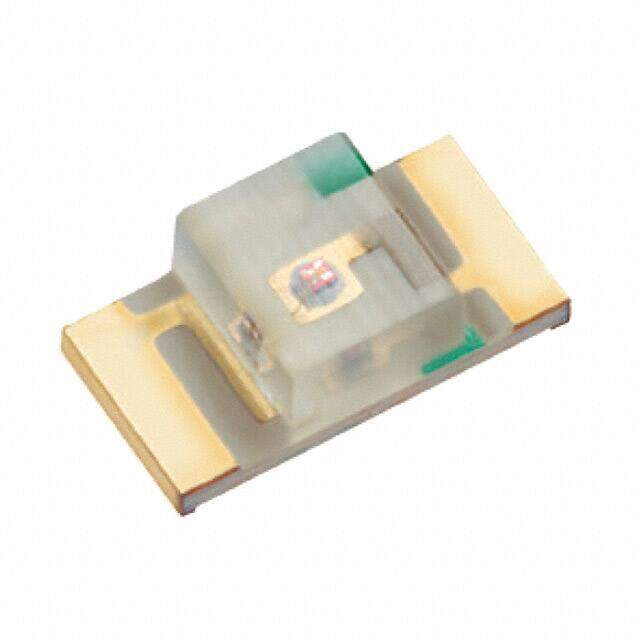

XZFBB55W-2
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED BLUE CLEAR 2SMD BOTTOM ENTRY
PDF
/
Inventory: 5599
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Color Blue
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 3.20mm Lx1.60mm W
Published 2014
Packaging Tape & Reel (TR)
Wavelength - Dominant 470nm
Forward Current-Max 0.03A
Lens Color Colorless
Wavelength - Peak 465nm
Lens Transparency Clear
Luminous Intensity 178 mcd
Lens Size 1.40mmx1.60mm
Lens Style Rectangle with Flat Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 3.3V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 3.6mm
Number of Functions 1
Packing Method TR, 7 INCH
Physical
Shape RECTANGULAR
Package / Case 1206 (3216 Metric)
Mounting Type Surface Mount, Bottom Entry
Mount Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 1.05mm
