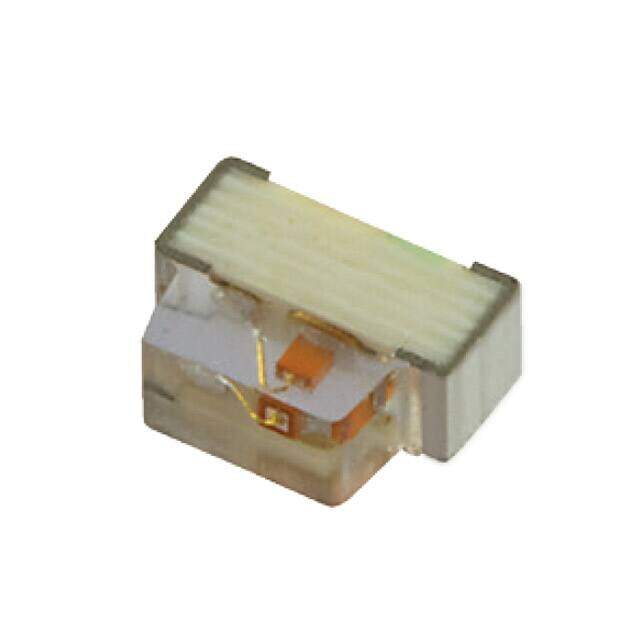

XZDGK87W
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN CLEAR 2SMD R/A
PDF
/
Buying Options
Total Price: USD $0.49
Unit Price: USD $0.4928
≥1 USD $0.4928
≥10 USD $0.30184
≥100 USD $0.1738
≥500 USD $0.135986
Inventory: 2216
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 600μm
Technical
Wavelength - Dominant 525nm
Forward Current-Max 0.025A
Lens Color Colorless
Wavelength - Peak 515nm
Lens Transparency Clear
Luminous Intensity 297 mcd
Lens Size 1.10mmx0.60mm
Lens Style Rectangle with Flat Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 110°
Voltage - Forward (Vf) (Typ) 3.3V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 1.6mm
Number of Functions 1
Packing Method TR, 7 INCH
Color Green
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 1.60mm Lx1.20mm W
Published 2014
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Package / Case 2-SMD, No Lead
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
