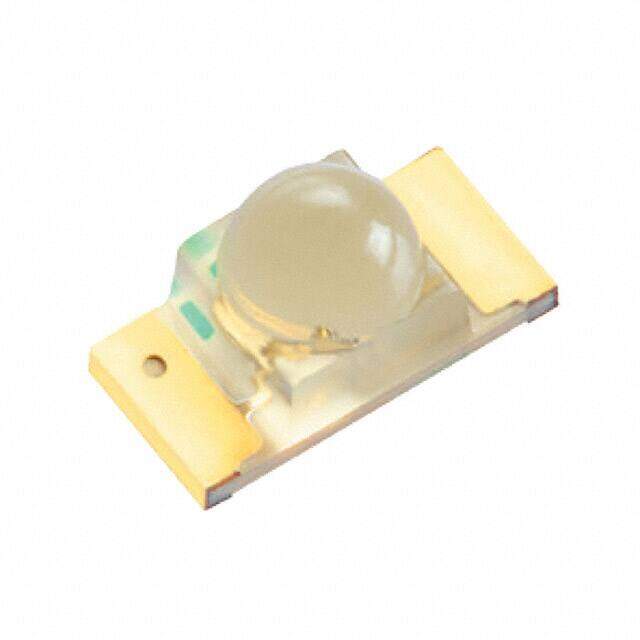

XZDGK55W-3 image
Favorite
XZDGK55W-3 image
Favorite

XZDGK55W-3

SunLED
RoHS
RoHS RoHS compliant
Package 1206 (3216 Metric)
Category Optoelectronics / LED Indication - Discrete
Description LED GREEN CLEAR 1206 SMD
PDF
/
Buying Options
Total Price: USD $0.51
Unit Price: USD $0.5104
≥1 USD $0.5104
≥10 USD $0.3168
≥100 USD $0.181896
≥500 USD $0.142384
Inventory: 1156
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height 1.8mm

Technical

Wavelength - Dominant 525nm
Forward Current-Max 0.025A
Lens Color Colorless
Wavelength - Peak 515nm
Lens Transparency Clear
Millicandela Rating 2090mcd
Luminous Intensity 2.09 cd
Lens Size 1.60mm Dia
Lens Style Round with Domed Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 35°
Voltage - Forward (Vf) (Typ) 3.3V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 3.75mm
Number of Functions 1
Packing Method TR, 7 INCH
Color Green
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 3.20mm Lx1.60mm W
Published 2014
Packaging Tape & Reel (TR)

Physical

Package / Case 1206 (3216 Metric)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 6 Weeks
