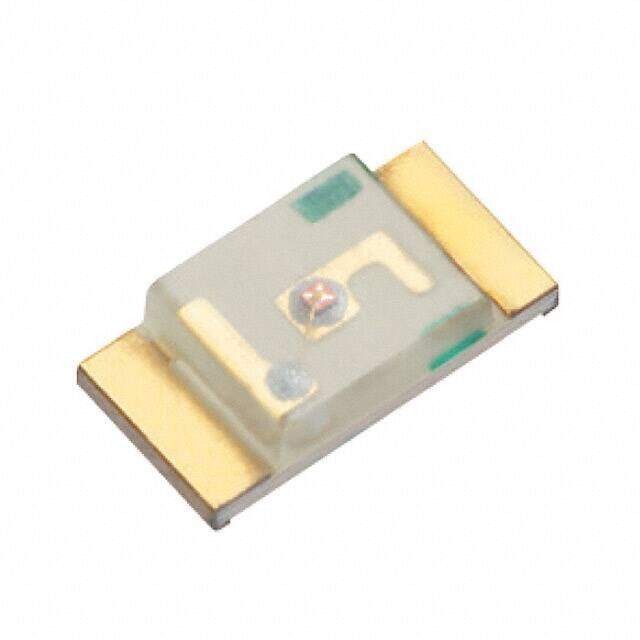

XZDGK55W-1

SunLED
RoHS
RoHS RoHS compliant
Package 1206 (3216 Metric)
Category Optoelectronics / LED Indication - Discrete
Description LED GREEN CLEAR 1206 SMD
PDF
/
Buying Options
Total Price: USD $0.49
Unit Price: USD $0.4928
≥1 USD $0.4928
≥10 USD $0.30184
≥100 USD $0.1738
≥500 USD $0.135986
Inventory: 1156
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height 750μm

Technical

Wavelength - Dominant 525nm
Lens Color Colorless
Wavelength - Peak 515nm
Lens Transparency Clear
Luminous Intensity 347 mcd
Lens Size 1.90mmx1.60mm
Lens Style Rectangle with Flat Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 3.3V
Configuration Standard
Case Code (Imperial) 1206
Case Code (Metric) 3216
Color Green
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 3.20mm Lx1.60mm W
Published 2014
Packaging Cut Tape (CT)

Physical

Package / Case 1206 (3216 Metric)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 6 Weeks
