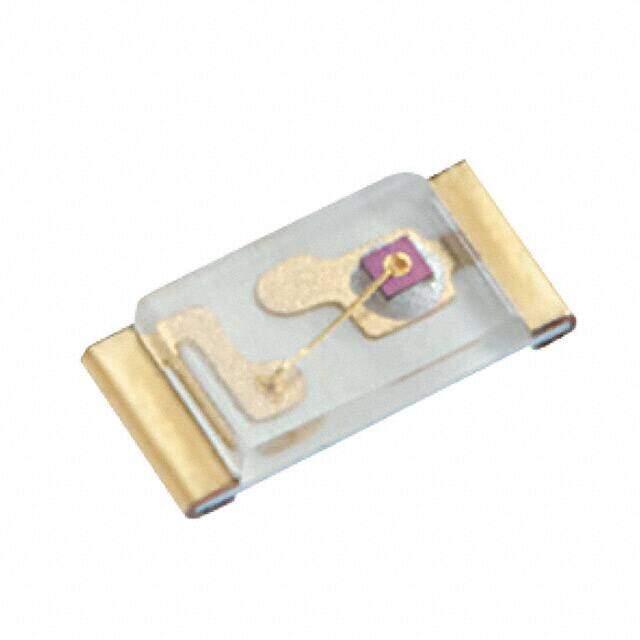

XZDGK53W-6
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN CLEAR 0603 SMD
PDF
/
Buying Options
Total Price: USD $0.49
Unit Price: USD $0.4928
≥1 USD $0.4928
≥10 USD $0.30184
≥100 USD $0.1738
≥500 USD $0.135986
≥1000 USD $0.124652
Inventory: 6961
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2014
Size / Dimension 1.60mm Lx0.80mm W
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
ECCN Code EAR99
Color Green
HTS Code 8541.40.20.00
Packing Method TR, 7 INCH
Number of Functions 1
Terminal Pitch 1.65mm
Case Code (Metric) 1608
Case Code (Imperial) 0603
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 3.3V
Viewing Angle 120°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 20mA
Lens Style Rectangle with Flat Top
Lens Size 1.20mmx0.80mm
Luminous Intensity 347 mcd
Lens Transparency Clear
Wavelength - Peak 515nm
Lens Color Colorless
Forward Current-Max 0.025A
Wavelength - Dominant 525nm
Dimensions
Height 280μm
Compliance
RoHS Status ROHS3 Compliant
