XZDGK53W-3
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Optoelectronics / LED Indication - Discrete
Description

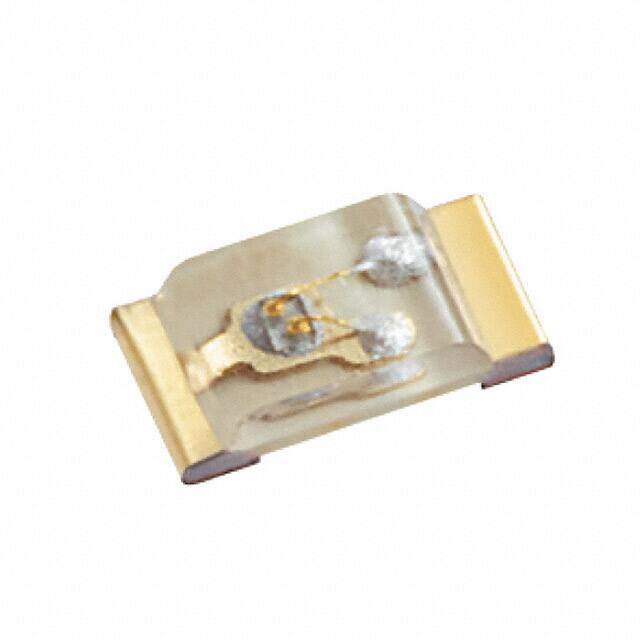

LED GREEN CLEAR 0603 SMD
PDF
/
Inventory: 7395
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 450μm
Technical
Wavelength - Dominant 525nm
Lens Color Colorless
Wavelength - Peak 515nm
Lens Transparency Clear
Luminous Intensity 347 mcd
Lens Size 1.10mmx0.80mm
Lens Style Rectangle with Flat Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 3.3V
Configuration Standard
Color Green
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 1.60mm Lx0.80mm W
Published 2014
Packaging Tape & Reel (TR)
Physical
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
