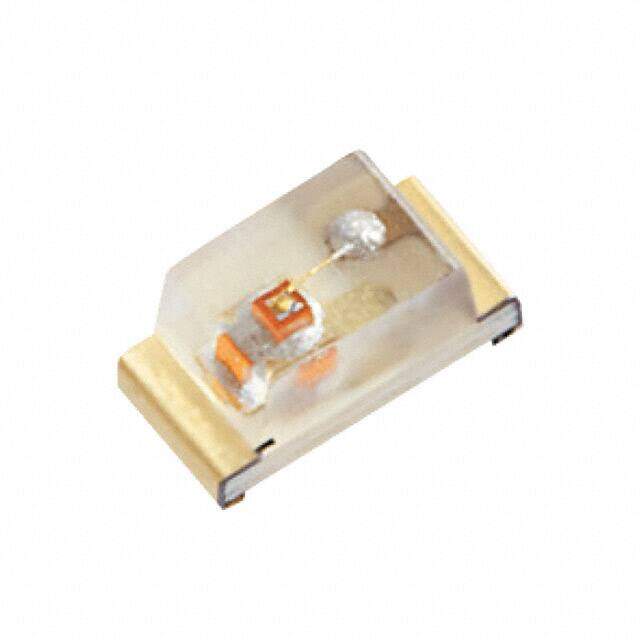

XZDGK53W-1
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN CLEAR 0603 SMD
PDF
/
Buying Options
Total Price: USD $0.51
Unit Price: USD $0.514806
≥1 USD $0.514806
≥10 USD $0.485672
≥100 USD $0.458179
≥500 USD $0.432242
≥1000 USD $0.407771
Inventory: 1161
Minimum: 1
-
+
Technical Details
Technical
Lens Style Rectangle with Flat Top
Lens Size 1.10mmx0.80mm
Luminous Intensity 347 mcd
Lens Transparency Clear
Wavelength - Peak 515nm
Lens Color Colorless
Forward Current-Max 0.025A
Wavelength - Dominant 525nm
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 3.3V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Case Code (Imperial) 0603
Case Code (Metric) 1608
Terminal Pitch 1.65mm
Number of Functions 1
Packing Method TR, 7 INCH
HTS Code 8541.40.20.00
Color Green
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Size / Dimension 1.60mm Lx0.80mm W
Published 2014
Packaging Cut Tape (CT)
Dimensions
Height 750μm
Compliance
RoHS Status ROHS3 Compliant
Physical
Shape RECTANGULAR
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
