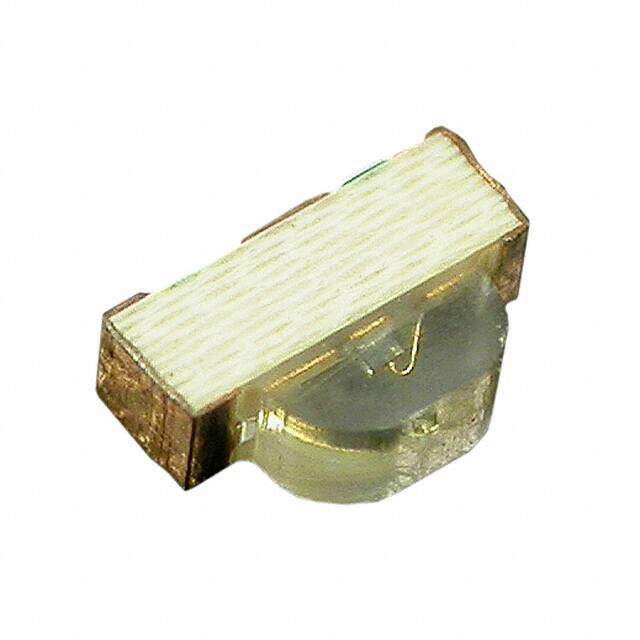

XZDG56W
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN CLEAR 2SMD R/A
PDF
/
Buying Options
Total Price: USD $0.54
Unit Price: USD $0.5368
≥1 USD $0.5368
≥10 USD $0.35552
≥100 USD $0.235048
≥500 USD $0.181474
Inventory: 1158
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 1mm
Technical
Wavelength - Dominant 525nm
Forward Current-Max 0.025A
Lens Color Colorless
Wavelength - Peak 515nm
Lens Transparency Clear
Luminous Intensity 397 mcd
Lens Size 2.00mmx1.00mm
Lens Style Rectangle with Domed Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 3.3V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Number of Functions 1
Packing Method TAPE AND REEL
HTS Code 8541.40.20.00
Color Green
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 3.00mm Lx2.00mm W
Published 2011
Packaging Cut Tape (CT)
Physical
Shape RECTANGULAR
Package / Case 2-SMD, No Lead
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
