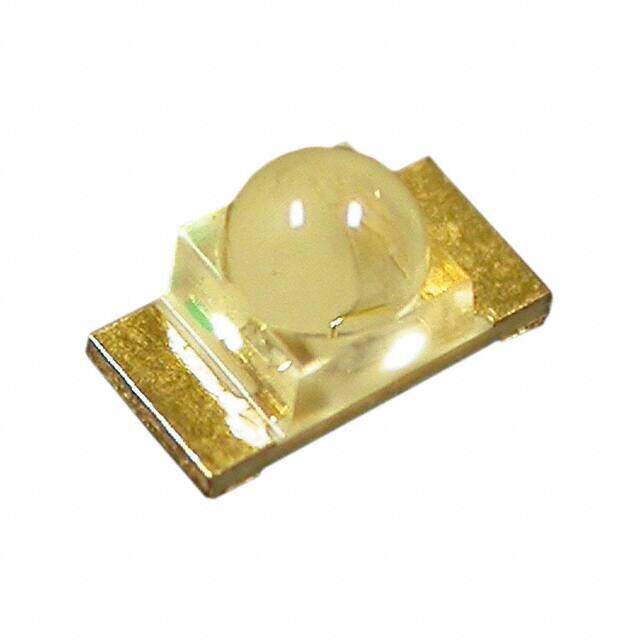

XZDG55W-3
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN CLEAR CHIP SMD
PDF
/
Buying Options
Total Price: USD $0.54
Unit Price: USD $0.5368
≥1 USD $0.5368
≥10 USD $0.35552
≥100 USD $0.235048
≥500 USD $0.181474
Inventory: 1153
Minimum: 1
-
+
Technical Details
Technical
Lens Size 1.60mm Dia
Luminous Intensity 2.29 cd
Millicandela Rating 2290mcd
Lens Transparency Clear
Wavelength - Peak 515nm
Lens Color Colorless
Forward Current-Max 0.025A
Wavelength - Dominant 525nm
Lens Style Round with Domed Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 35°
Voltage - Forward (Vf) (Typ) 3.3V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Case Code (Imperial) 1206
Case Code (Metric) 3216
Terminal Pitch 3.75mm
Number of Functions 1
Packing Method TR, 7 INCH
HTS Code 8541.40.20.00
Color Green
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Size / Dimension 3.20mm Lx1.60mm W
Published 2011
Packaging Cut Tape (CT)
Dimensions
Height 1.8mm
Compliance
RoHS Status ROHS3 Compliant
Physical
Package / Case 1206 (3216 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
